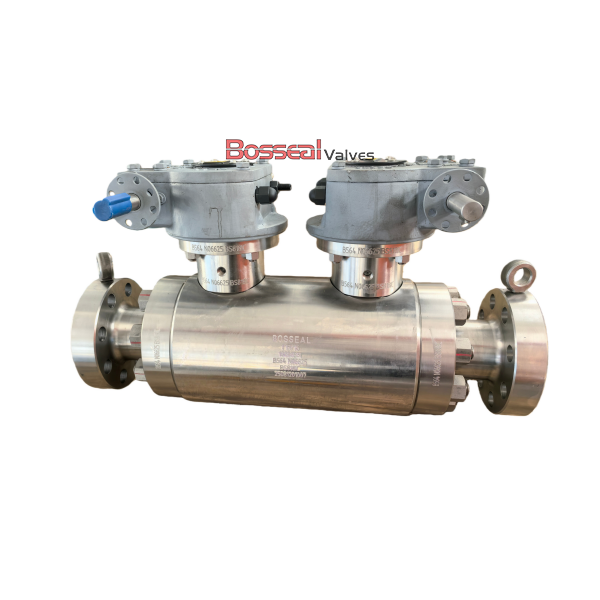

ASTM A182 F51 Trunnion Ball Valve, 6 IN, CL2500, Full Welded

Key Specifications / Features

Model No. : 181302110

This 6-inch Double Block & Bleed (DBB) ball valve is engineered to meet API 6D and BS 5351 standards, featuring a full-welded ASTM A182 F51 body and F316 trim for superior corrosion resistance and durability. Rated Class 2500 LB, it delivers reliable performance under high-pressure and high-temperature conditions. The valve’s RTJ flanged ends ensure a secure, leak-proof connection, while the DBB design allows simultaneous isolation and safe venting of pipeline media. Ideal for oil, gas, and industrial applications, it offers operational safety and efficiency. As a leading trunnion ball valve supplier from China, we provide high-quality, precision-engineered valves for critical pipeline systems.


Detail Information

Valve Description:
181302110 DBB Ball Valves, Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 6 Inches, DN150, 150 mm
Pressure: Class 2500 LB, PN420
Body Material: ASTM A182 F51, ASTM A182 F304, ASTM A105N, ASTM A182 F316, ASTM A350 LF2, Inconel 625, ASTM A182 F55, ASTM A182 F53
Bore Type: Full Bore or Reduced Bore
Trim Material: ASTM A182 F304, ASTM A182 F6A, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
Structure: Full Welded
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
End Connection: RTJ Flanged
Operation: Gear
Seat Insert: RPTFE, DEVLON, NYLON, PEEK

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
