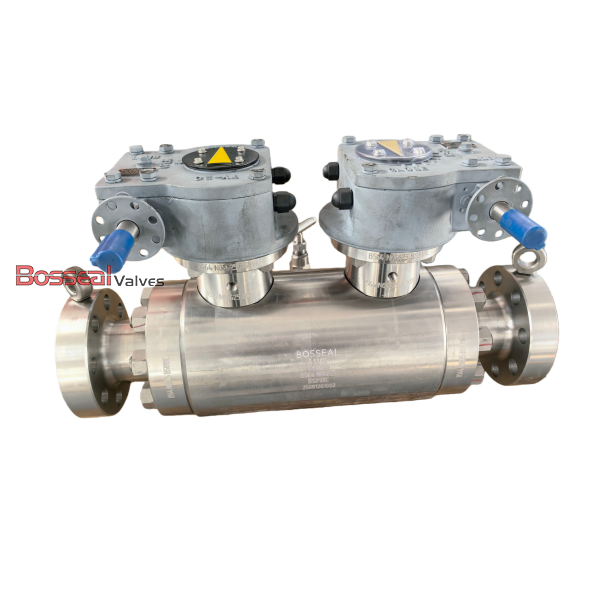

ASTM A182 F316 DBB Ball Valve, API 6D, BS 5351, 4 IN, CL2500

Key Specifications / Features

Model No. : 181302109

This 4-inch trunnion-mounted ball valve is designed to meet API 6D and BS 5351 standards, featuring a robust ASTM A182 F316 body and trim for exceptional corrosion resistance and durability. Rated Class 2500 LB, the valve ensures reliable performance under high-pressure and high-temperature conditions. Its full-welded construction and RTJ flanged ends provide a leak-proof, long-lasting connection for critical pipeline systems. Equipped with gear operation, it allows smooth and precise control for both manual and automated applications. As a leading DBB ball valve factory in China, we deliver high-quality, reliable valves tailored to demanding industrial, oil, and gas operations.


Detail Information

Valve Description:
181302109 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: Full Welded
Body Material: ASTM A182 F316, ASTM A350 LF2, ASTM A182 F51, ASTM A182 F304, ASTM A105N, ASTM A182 F55, ASTM A182 F53, Inconel 625
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Sizes: 4 Inch, DN100, 100 mm
Pressure: Class 2500 LB, PN420
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
