Key Specifications / Features
Model No. : 10SBS3WWCB
Find a high-quality ASTM A216 WCB Dual Plate Check Valve with API 594 certification, featuring a 10-inch size, 300 LB pressure rating, DN250, and PN50 specifications. This valve is equipped with an A351 CF8M disc and Viton seat, boasting a short face-to-face length and Wafer-RF end connection.
Categories
Dual Plate Check Valve
Tags:
API 594 Check Valve
, 10 Inch Check Valve
, Class 300 LB Check Valve
.

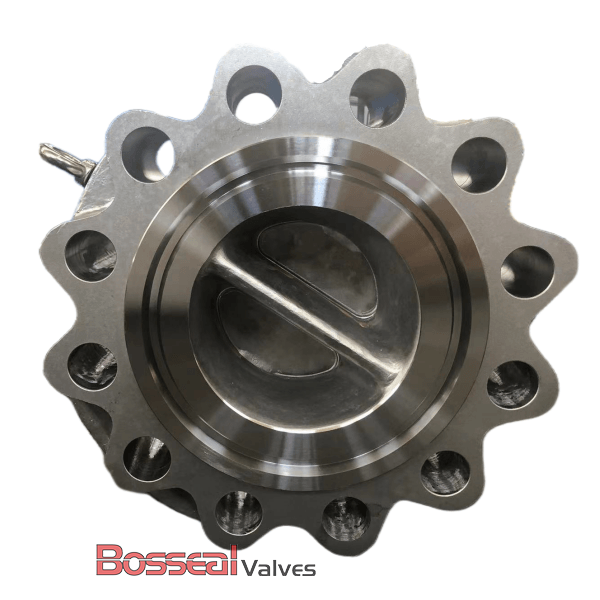

API 594 Dual Plate Check Valve, 10 inch, 300 LB, Wafer, A216 WCB body, CF8M Disc, Viton Seat
Valve Description:
1842016 Dual Plate Check Valve 10SBS3WWCB
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: 10 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: /
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, HIgh flow efficiency, Low noise, Short face-to-face length
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
Operation: /
