Key Specifications / Features
Model No. : 8G1RWCB08

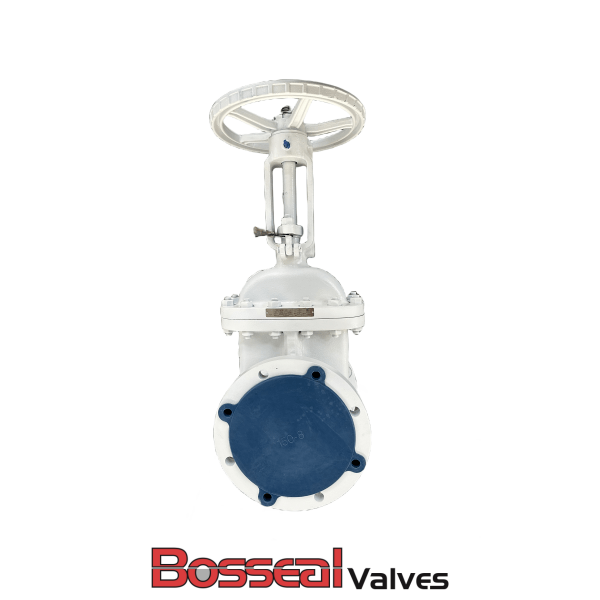

Get premium quality ASTM A216 WCB gate valves from a trusted provider offering API 600 standards. Our valves are 8 inches in size (DN200), Class 150 LB, and PN20 rated. Featuring 1Cr13+STL Trim 8, bolted bonnet, OS & Y design, and RF ends, these valves are operated effortlessly with a handwheel. Trust us for reliable performance and durability in your industrial applications.
Categories
Gate Valves
Tags:
API 600 Gate Valve
, 8 Inch Gate Valve
, Class 150 LB Gate Valve
.
Gate Valve, API 600, OS & Y, 8 inch, 150 LB, RF, WCB Body, 1Cr13+STL Trim, Handwheel
Valve Description:
1821033 Gate Valve 8G1RWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 8 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, NACE MR0175
Product Range:
Body material: Carbon Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
