Key Specifications / Features
Model No. : 18G1RCF820
Discover top-quality gate valves from our API600-certified supplier. Available in 18 inches, DN450, with a pressure rating of 150 LB and PN20. Constructed to API 603 standards, crafted from ASTM A351 CF8 stainless steel. Features SS 304+STL No.20 trim, bolted bonnet, and gear operation for optimal performance. Designed with OS & Y configuration and RF sealing. Upgrade your industrial operations with reliable gate valves tailored to meet your needs.
Categories
Gate Valves
Tags:
18 Inch Gate Valve
, Class 150 LB Gate Valve
, ASTM A351 CF8 Gate Valve
.
API 600 Gate Valve, 18 Inch, 150 LB, RF, OS & Y, A351 CF8 Body, SS 304 Trim, Gear Operation
Valve Description:
1821032 Gate Valve 18G1RCF820
Design Standard: API 600, API 603
Structure: Bolted Bonnet
Nominal size: 18 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Gear
Body Material: ASTM A351 CF8
Trim Material: SS 304+STL, No.20
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
Next: ASTM A216 WCB Gate Valve, API 600, OS & Y, 8 IN, 150 LB, RF

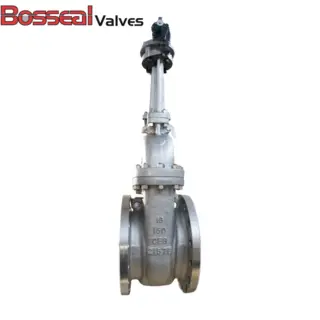

Previous: API 603 Gate Valve, 14 Inch, 150 LB, ASTM A351 CF8, 304 Trim
