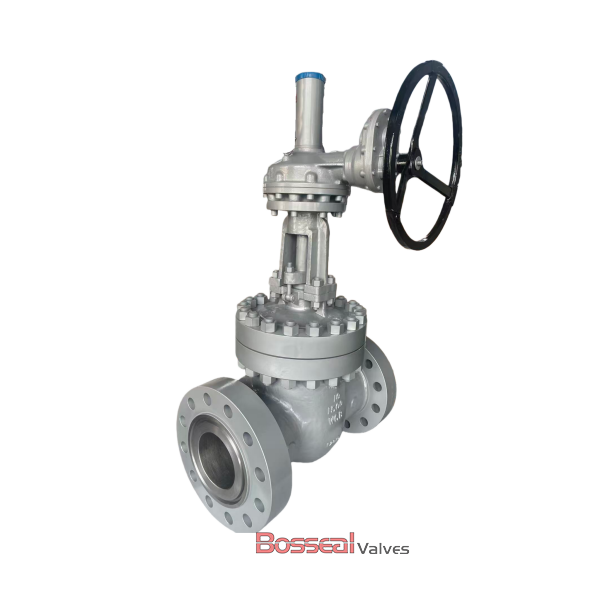

ASTM A217 C12A Gate Valve, API 600, 30 Inches, 150 LB, OS&Y

Name: ASTM A217 C12A Gate Valve, API 600, 30 Inches, 150 LB, OS&Y
SKU: 1821174
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : 1821174

This gate valve is designed in accordance with API 600 standards, featuring a bolted bonnet and a flexible wedge for dependable shut-off and tight sealing performance. The ASTM A217 C12A alloy steel body provides excellent strength and resistance to high-temperature and high-pressure conditions, making it suitable for power plants and industrial pipelines. With a 30-inch (DN750) size and Class 150 LB (PN20) rating, it ensures stable and efficient flow control. The non-rising handwheel design allows convenient operation in limited spaces. As a leading OS&Y gate valve supplier in China, we deliver reliable, high-quality valve solutions.

Request a quote

Tags:

ASTM A217 C12A Gate Valve

API 600 Gate Valve

OS&Y Gate Valve

Detail Information

Valve Description:
1821174 Wedge Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Sizes: 30 Inches, DN750
Pressure Rating: Class 150 LB, PN20
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM A217 C12A, ASTM A217 WC6, ASTM B148 C95800, ASTM A995 5A, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A216 WCC, ASTM A216 WCB, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF3, ASTM A351 CF8, ASTM A995 4A, 6A, ASTM A217 C5, ASTM A217 WC9
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Al-bronze
Normal diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure range: 150 LB - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
