Key Specifications / Features

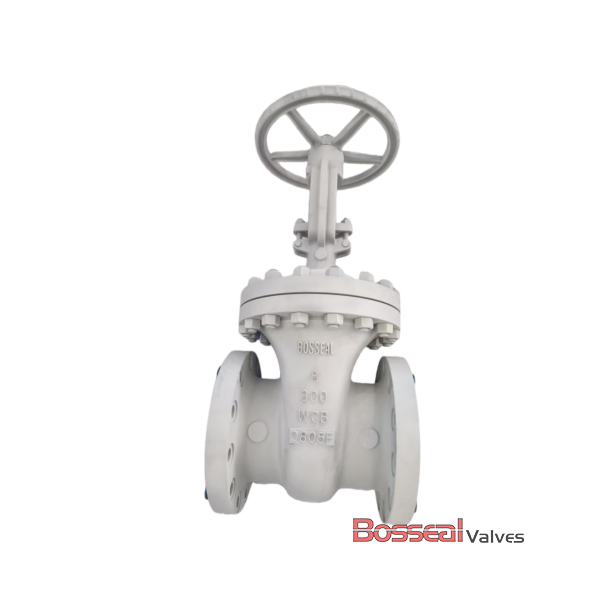

This Cast Steel Gate Valve is designed in accordance with API 600 standards, offering dependable isolation performance for critical industrial pipelines. It features a bolted bonnet and OS&Y (Outside Screw and Yoke) construction, providing clear visual indication of valve position and easy maintenance. Manufactured from ASTM A217 C12A alloy steel, the valve delivers excellent strength, high-temperature resistance, and reliable durability in severe operating conditions. With a 2 inch (DN50) size and Class 300 LB rating, it is suitable for medium to high-pressure systems. The RF flanged ends ensure secure, leak-free installation, while the flexible wedge design guarantees tight sealing performance. As a leading Cast Steel Gate Valve Supplier in China, we are committed to providing high-quality and long-lasting valve solutions.
Valve Description:
1821180 Cast Steel Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Sizes: 2 Inch, DN50
Pressure Rating: Class 300 LB, PN50
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM A217 C12A, ASTM A216 WCB, ASTM A217 WC9, ASTM A217 C5, ASTM A995 6A, ASTM A995 4A, ASTM A351 CF8, ASTM A351 CF3, ASTM A352 LCB, ASTM A216 WCC, ASTM A352 LCC, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A995 5A, ASTM B148 C95800, ASTM A217 WC6
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Al-bronze
Normal diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
