Key Specifications / Features
Model No. : 10BSM25JLF2

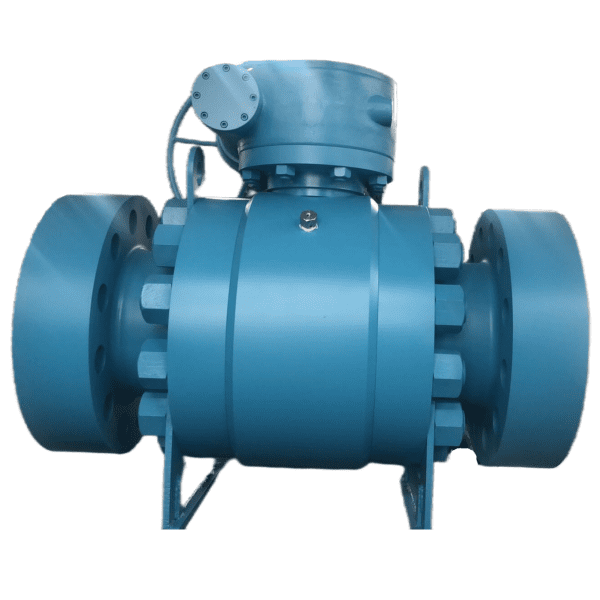

This Metal Seated Trunnion Mounted Ball Valve is designed to API 6D standards and has a size of 10 inches and a pressure rating of 2500 LB. The valve features a RTJ connection, LF2 Body, F51 Trim, and a metal seat. It is operated with a gear mechanism. This valve is ideal for use in applications where reliable and long-lasting shut-off is essential.
Categories
Trunnion Mounted Ball Valve
Tags:
ASTM A350 LF2 Ball Valve
, 10 Inch Ball Valve
, Class 2500 LB Ball Valve
.
Metal Seated Trunnion Mounted Ball Valve, API 6D, 10 inch, 2500 LB, RTJ, LF2 Body, F51 Trim, metal seat, Gear Operation
Valve Description:
1811028 Trunnion Mounted Ball Valve 10BSM25JLF2
Design Standard: API 6D
Structure: Three pieces forged body, Side Entry, Bolted Bonnet, Metal Seat
Nominal size: 10 Inch
Nominal class: 2500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear Box
Body Material: ASTM A350 LF2
Trim Material: Ball-A182 F51 + Hard Chrome, Seat-A182 F51 + Stellite 12
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Metal seat
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +350℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
