Key Specifications / Features
Model No. : 1811127
Discover high-quality ASTM A350 LF2 ball valves at our factory, available in a 28-inch size, with a pressure rating of 600 LB. These valves, compliant with API 6D and BS 5351 standards, feature a 3PC design and ASTM A105N construction, ensuring durability and reliability. Equipped with DEVLON seats and gear operation options, they offer optimal performance. RF flanged for easy installation, these 3-piece valves are ideal for various industrial applications.
Categories
Trunnion Mounted Ball Valve
Tags:
28 Inch Ball Valve
, Class 600 LB Ball Valve
, API 6D Ball Valve
.

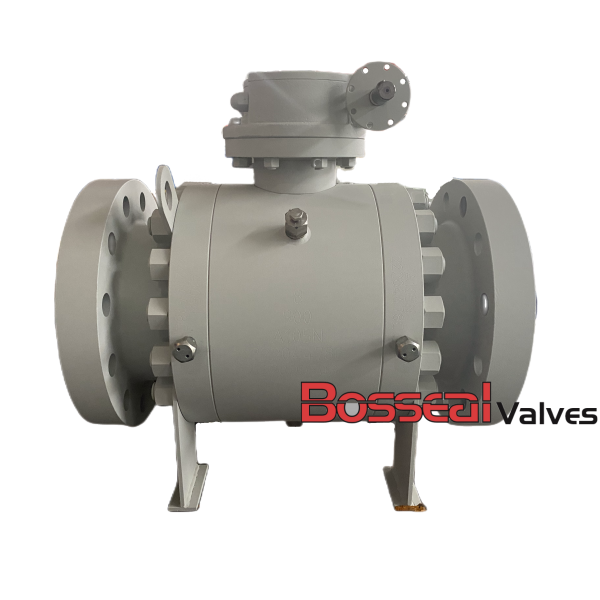

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 28 INCH, 600 LB, RF, DEVLON seat, Gear Operation
Valve Description:
1811127 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 28 Inch
Nominal class: 600 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
