Key Specifications / Features

Model No. : 8BS9RLF2

DBB Trunnion Mounted Ball Valve, API 6D, 8 inch, 900 LB, RF, LF2 Body, F316 Trim, PEEK Seat, Gear Operation. Get high-quality DBB Trunnion Mounted Ball Valves at competitive prices. Our valves are API 6D compliant and feature an 8-inch size, 900 LB pressure rating, RF connection, LF2 Body material, F316 Trim, PEEK Seat, and Gear Operation. Choose reliability and efficiency for your industrial applications.


Detail Information

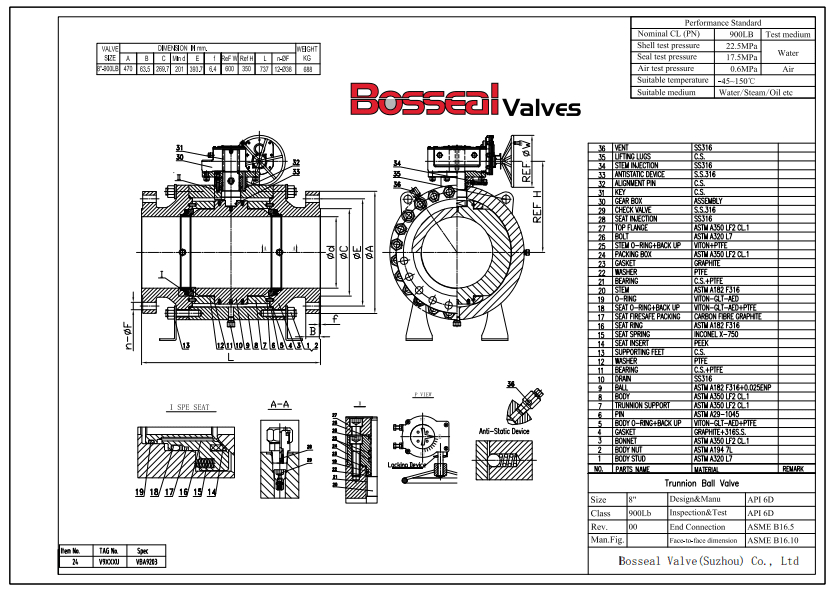

DBB Trunnion Mounted Ball Valve, API 6D, 8 inch, 900 LB, RF, LF2 Body, F316 Trim, PEEK Seat, Gear Operation

Valve Description:
1811032 Trunnion Mounted Ball Valve 8BS9RLF2
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DPE Seats
Nominal size: 8 Inch
Nominal class: 900 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DBB, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
