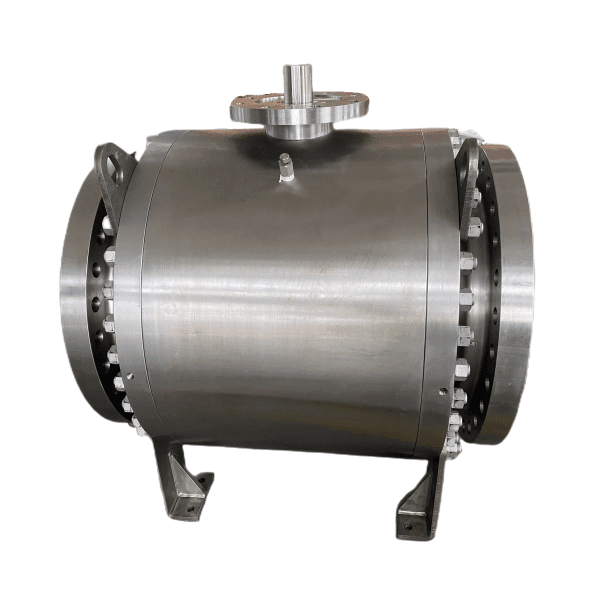

ASTM A350 LF2 Ball Valve, TM, API 6D, 24 x 20 Inch, 600 LB

Key Specifications / Features
Model No. : 24BS6RLF2

Discover our top-quality Trunnion Mounted Ball Valve, built to meet API 6D standards. This valve boasts impressive specifications, including a 24 x 20 inch size, 600 LB pressure rating, RF connection, A350 LF2 Body, F6A Trim, PEEK Seat, and Gear Operation. Trust our valve for reliable performance and excellent durability in various industrial applications.

Categories Trunnion Mounted Ball Valve

Tags: ASTM A350 LF2 Ball Valve , API 6D Ball Valve , Class 600 LB Ball Valve .

Detail Information
Trunnion Mounted Ball Valve, API 6D, 24 X 20 inch, 600 LB, RF, A350 LF2 Body, F6A Trim, PEEK Seat, Gear Operation

Valve Description:
1811031 Trunnion Mounted Ball Valve 24BS6RLF2
Design Standard: API 6D
Structure: Three pieces forged body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 24 x 20 Inch
Nominal class: 600 LB
Bore Type: Reduced Bore
End Connection: RF
Operation: Gear Box
Body Material: ASTM A350 LF2
Trim Material: A182 F6A, PEEK Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +120℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
