Key Specifications / Features
Model No. : 2G6RCF8C
Discover high-quality ASTM A351 CF8C gate valves from a trusted fabricator. These gate valves are designed and manufactured in accordance with API 600 and API 603 standards. With a 2-inch size and a pressure rating of 600 LB, they are suitable for a wide range of industrial applications. The valves feature DN50 and PN100 specifications, ensuring reliable performance in demanding environments. Equipped with an OS & Y design, RF flanged end, flexible wedge, non-rising stem, and handwheel operation, these gate valves provide excellent control and easy handling. Choose our ASTM A351 CF8C gate valves for efficient and durable fluid flow management.
Categories
Gate Valves
Tags:
ASTM A351 CF8C Gate Valve
, API 600 Gate Valve
, API 603 Gate Valve
.

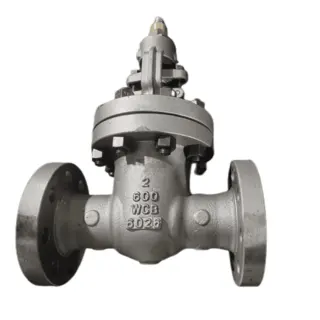

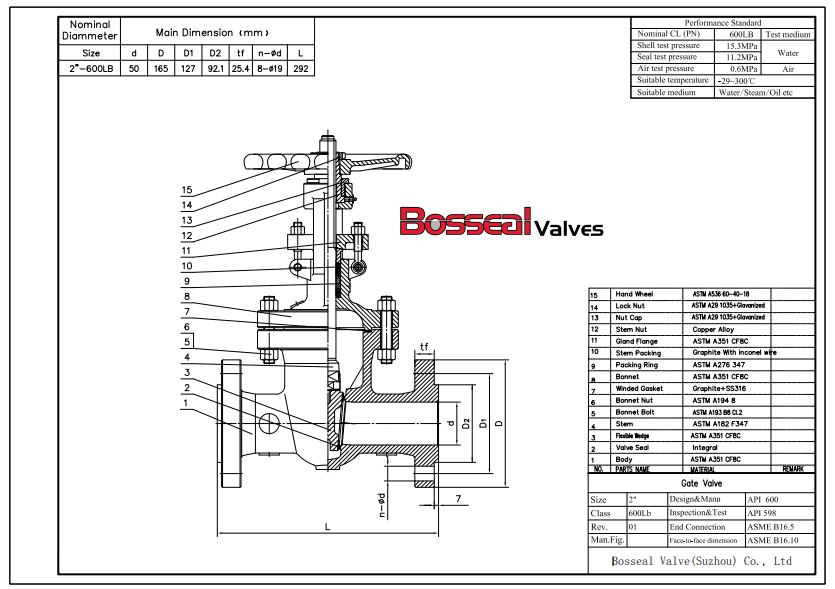

2 inch Class 600 Flanged Gate Valve, API 600, OS & Y, RF, A351 CF8C Body and Trim, Handwheel Operation
Valve Description:
1821018 Gate Valve 2G6RCF8C
Design Standard: API 600, API 603
Structure: Bolted Bonnet
Nominal size: 2 Inch
Nominal class: 600 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A351 CF8C
Trim Material: ASTM A351 CF8C
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
