Key Specifications / Features
Model No. : 2G3RM35-1
We Provide MONEL Gate Valves, Wedge, Nickel Alloy Steel, MONEL 400, ASTM A494-M35-1, 2 Inch, 300 LB, API 600, DN50, PN50, Bolted Bonnet, Standard Bore, RF.

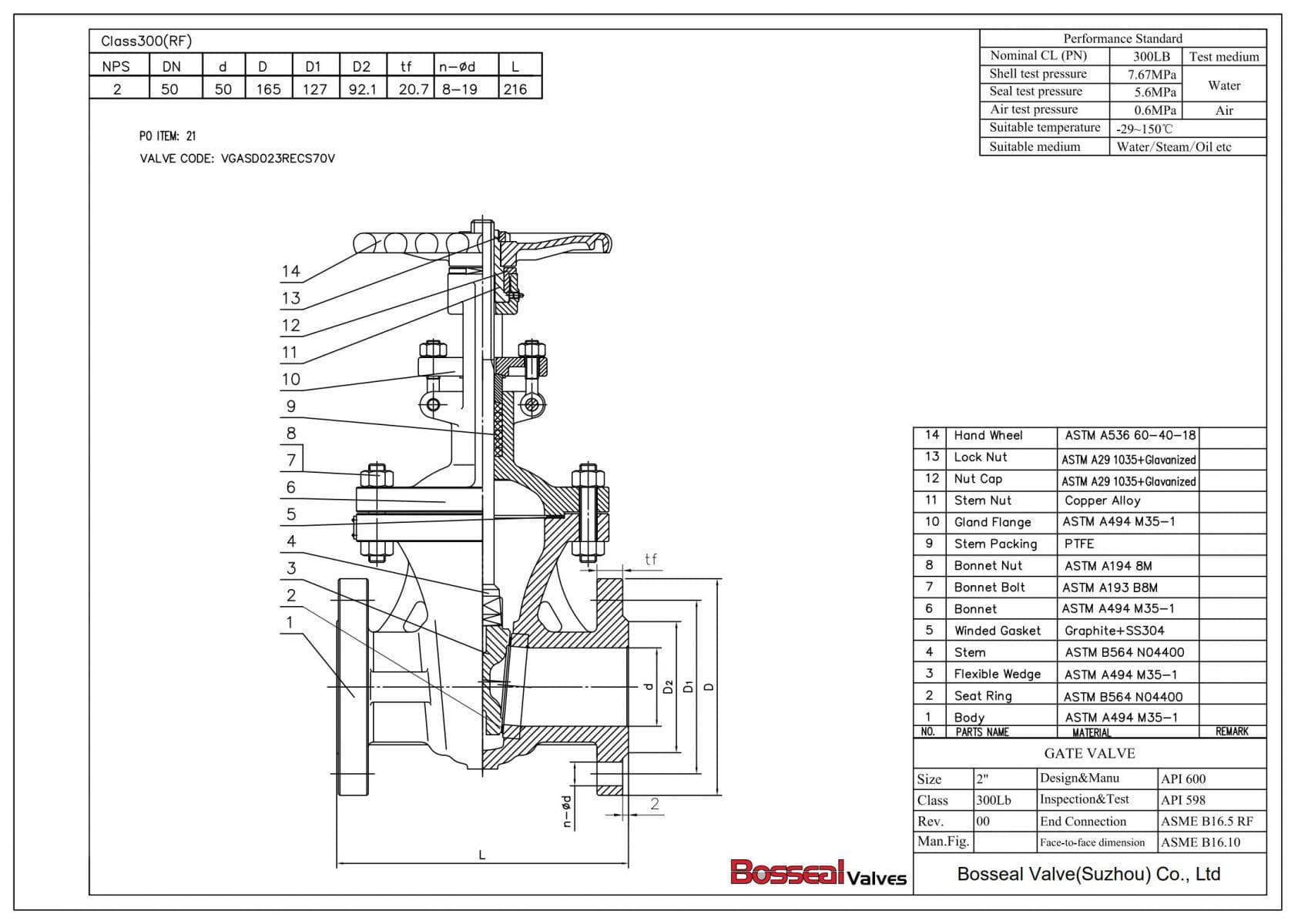

MONEL 400 ASTM A494 M35-1 Gate Valve, 2 Inch, 300 LB, API600
Detail Information
Product Item: Wedge Gate Valve
Model No.: 2G3RM35-1
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 2 Inch
Nominal class: 300 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A494-M35-1 (MONEL 400)
Trim Material: MONEL 400+Hardface
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range
Body material: Nickel Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -46℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
Model No.: 2G3RM35-1
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 2 Inch
Nominal class: 300 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A494-M35-1 (MONEL 400)
Trim Material: MONEL 400+Hardface
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range
Body material: Nickel Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -46℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
