Key Specifications / Features
Model No. : 6T1WDI
We provide Rubber Lined Concentric Butterfly Valves, 6 Inch, DN150, 150 LB, PN16, ASTM A536, Wafer End, API 609 Cat A, EN 593, and Hand Lever Operation.
ASTM A536 Concentric Butterfly Valve, 6 Inch, 150 LB
Detail Information

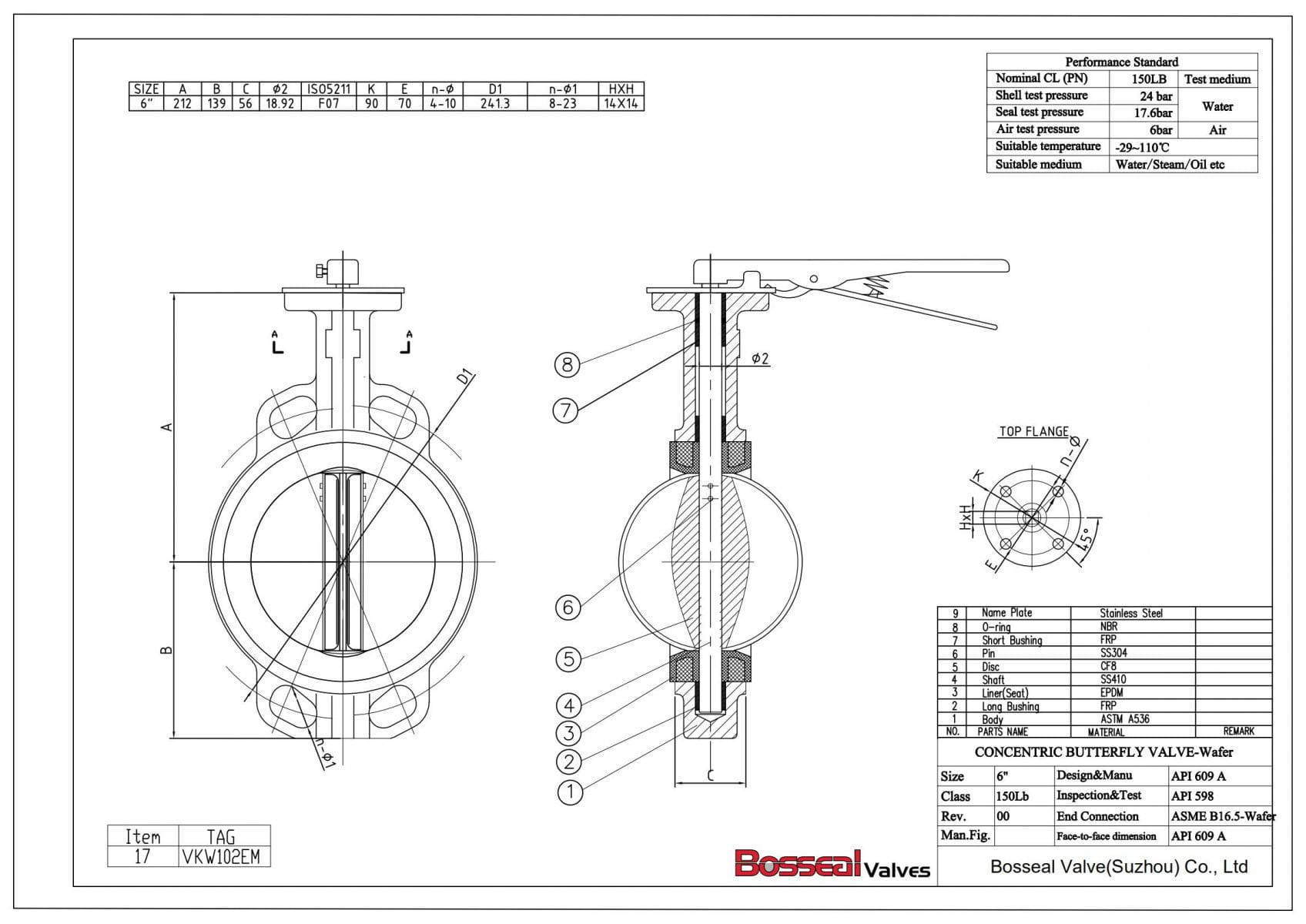

Rubber Lined Concentric Butterfly Valve, 6 inch, 150 LB, PN16, Wafer, ASTM A536 Ductile Iron body, CF8 Disc, EPDM lined seat, Lever Operation
Valve Description:
Concentric Butterfly Valve
Design Standard: API 609 Cat A, EN 593
Structure: Concentric
Nominal size: 6 Inch, DN150
Nominal class: 150 LB, PN16
End Connection: Wafer
Operation: Hand Lever
Body Material: ASTM A536
Trim Material: A351 CF8 disc, EPDM seat
Face to face: API 609
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space
Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
Valve Description:
Concentric Butterfly Valve
Design Standard: API 609 Cat A, EN 593
Structure: Concentric
Nominal size: 6 Inch, DN150
Nominal class: 150 LB, PN16
End Connection: Wafer
Operation: Hand Lever
Body Material: ASTM A536
Trim Material: A351 CF8 disc, EPDM seat
Face to face: API 609
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space
Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
Next: Concentric Butterfly Valve, 6 Inch, 150 LB, WCB, API 609
