Key Specifications / Features
Model No. : 6T1WWCB
We Provide ASTM A216 WCB Concentric Butterfly Valves, API 609 Cat A, EN 593, 6 Inch, DN150, 150 LB, PN16, Wafer End, ISO 5211, Top Mounting, Duplex 5A Disc.
Concentric Butterfly Valve, 6 Inch, 150 LB, WCB, API 609
Detail Information

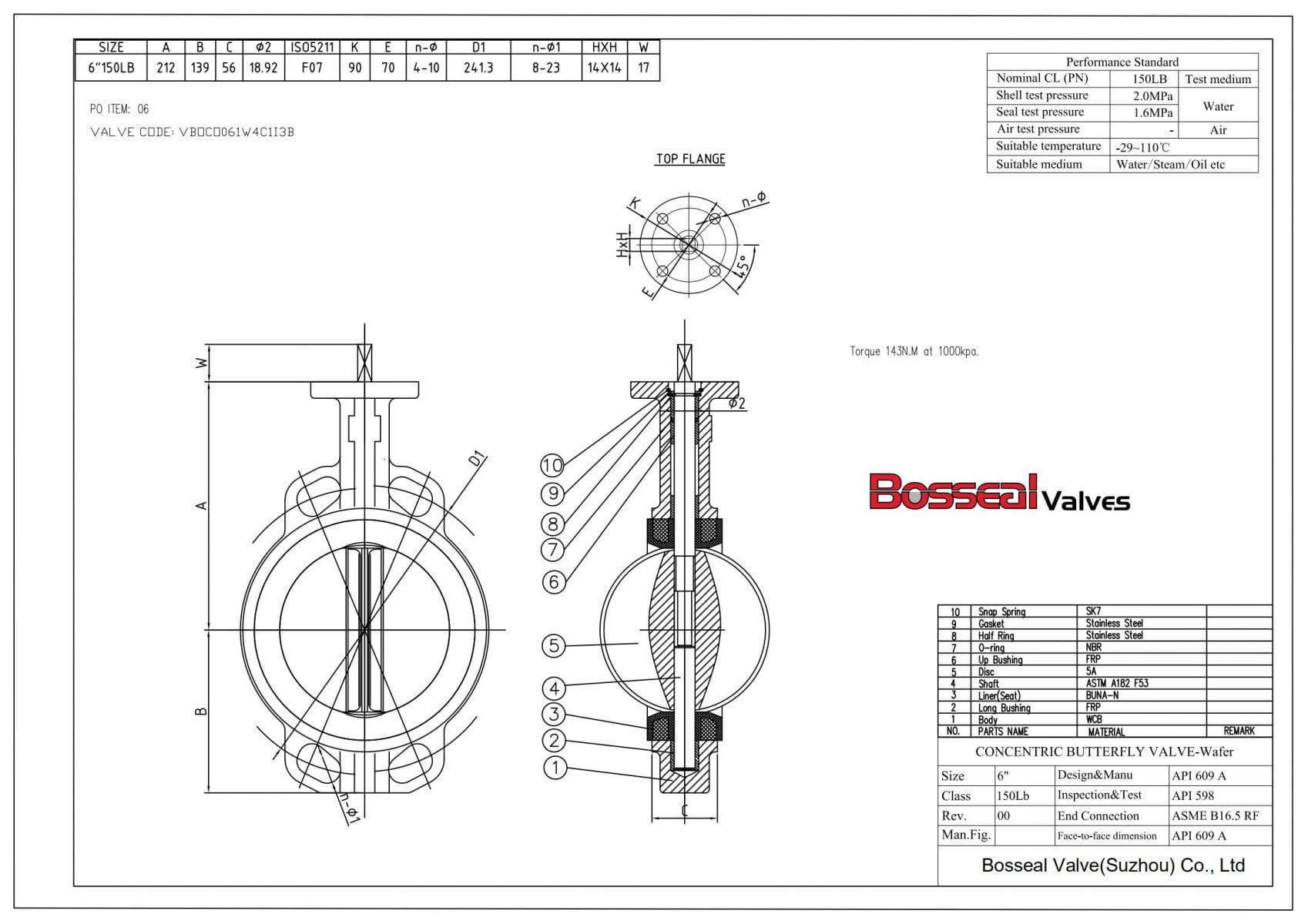

ISO 5211 Top Mounting Concentric Butterfly Valve, 6 inch, 150 LB, PN16, Wafer, ASTM A216 WCB body, Duplex 5A Disc, BUNA-N lined seat, bare shaft
Valve Description:
Concentric Butterfly Valve
Design Standard: API 609 Cat A, EN 593
Structure: Concentric
Nominal size: 6 Inch, DN150
Nominal class: 150 LB, PN16
End Connection: Wafer
Operation: Bare Stem with ISO 5211 Top Mounting
Body Material: ASTM A216 WCB
Trim Material: A995 5A disc, BUNA-N seat
Face to face: API 609
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space
Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
Valve Description:
Concentric Butterfly Valve
Design Standard: API 609 Cat A, EN 593
Structure: Concentric
Nominal size: 6 Inch, DN150
Nominal class: 150 LB, PN16
End Connection: Wafer
Operation: Bare Stem with ISO 5211 Top Mounting
Body Material: ASTM A216 WCB
Trim Material: A995 5A disc, BUNA-N seat
Face to face: API 609
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space
Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
Next: ASTM A216 WCB Concentric Butterfly Valve, 36 Inch, 150 LB
Previous: ASTM A536 Concentric Butterfly Valve, 6 Inch, 150 LB
