Key Specifications / Features
As a leading API 6D ball valve provider in China, we offer high-quality API 6A compact ball valves engineered for demanding applications. Our valves feature a one-piece (1PC) body design with 6-5/8 inch size and robust F51 trim, ensuring durability and reliable performance under high-pressure conditions up to 2000 PSI. They are available with soft or metal seats, including TCC or STL options, and versatile RTJ or butt-weld (BW) end connections. Designed for precision, safety, and long-term service, these valves provide efficient flow control and are ideal for critical industrial and oilfield applications.
Valve Description:

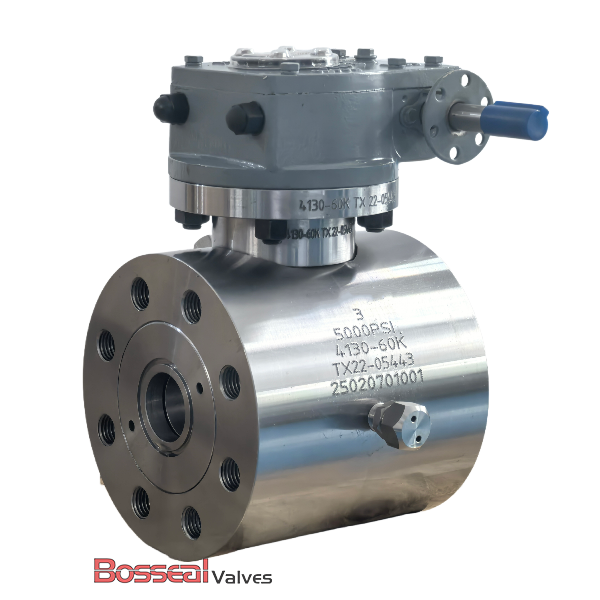

181105013 API 6A Compact Ball Valve
Design Standard: API 6D/API 6A
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Operation: Lever/Gear/Bare Shaft
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
