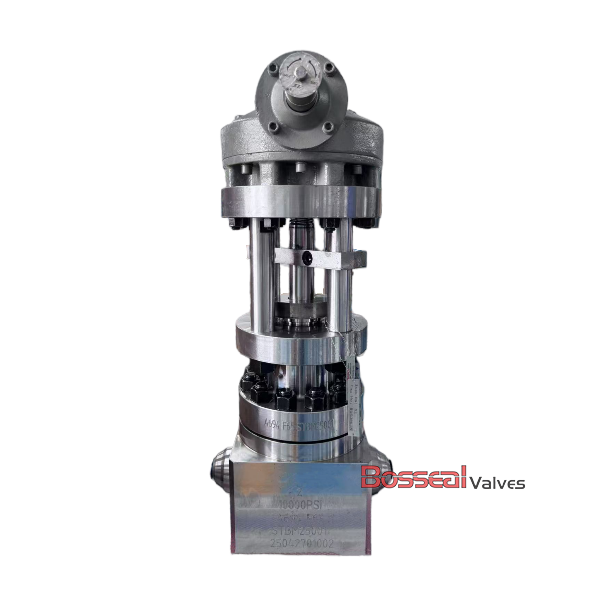

ASTM A694 F60 Globe Valve, API 6A, BB, 3-1/16 IN, 15000 PSI

Key Specifications / Features

Model No. : GLV-183103046

As a leading ASTM A694 F60 globe valve factory in China, we specialize in manufacturing high-performance valves built to API 6A standards. Designed with a bolted bonnet for secure sealing and easy maintenance, this globe valve is offered in a 3-1/16 inch size and engineered to handle working pressures up to 15,000 PSI. The body is available in 4130 alloy steel or Inconel for maximum durability, while trims are made from 17-4PH stainless steel or Inconel for excellent corrosion and wear resistance. Featuring RTJ/BW ends and gear operation, it ensures reliability in demanding industrial applications.


Detail Information

Valve Description:
183103046 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
Seat Insert: TCC or STL Hardfaced
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
