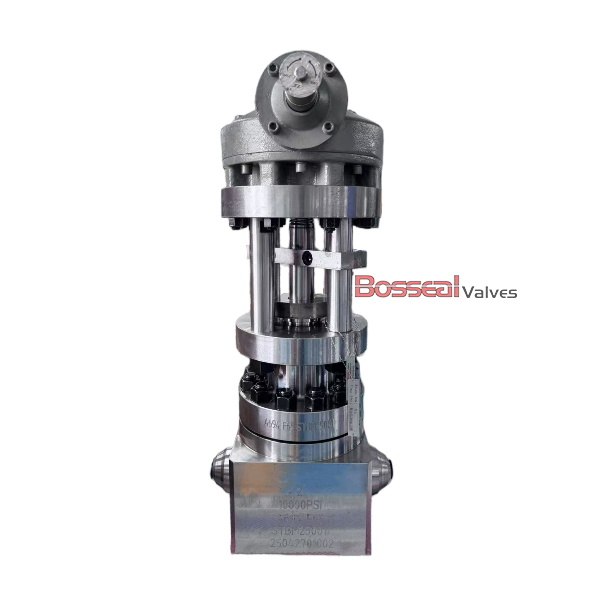

ASTM A694 F60 Globe Valves, API 6A, 3-1/8 Inch, BB, F51 Trim

Key Specifications / Features

Model No. : GLV-183103005

As a leading ASTM A694 F60 globe valve plant in China, we specialize in producing valves engineered to API 6A standards for superior reliability in demanding applications. Manufactured with ASTM A694 F65 or Inconel body materials, these valves are designed to withstand extreme pressure and harsh environments. The 3-1/8 inch bolted bonnet construction enhances durability and ease of maintenance, while trims in F51 or 17-4PH stainless steel ensure excellent performance and resistance to wear. Featuring gear operation for precise flow control, they are available with RTJ or butt-weld ends for versatile installation options.

Detail Information

Valve Description:
183103005 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
