ASTM A890 5A Gate Valve, 42 IN, CL 600, Bolted Bonnet

Name: ASTM A890 5A Gate Valve, 42 IN, CL 600, Bolted Bonnet
SKU: 1821104
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : 1821104

Our bolted bonnet gate valves are crafted with a durable ASTM A890 5A duplex stainless steel body and designed to meet API 600 standards. These 42-inch (DN1050) valves, rated for 600 LB, deliver exceptional performance in high-pressure applications. With an OS&Y configuration and RF flanged ends, they ensure reliable sealing and efficient flow control. Built for precision and longevity, these valves are ideal for demanding industrial environments, providing consistent and dependable service. As a leading gate valve manufacturer in China, we are dedicated to delivering superior products tailored to your specific requirements.

Request a quote

Tags:

ASTM A890 5A Gate Valve

42 Inch Gate Valve

Class 600 LB Gate Valve

Detail Information

42 Inch Wedge Gate Valve, ASTM A890 5A Body, DN1050, Class 600 LB, RF Flanged.

Valve Description

1821104 Gate Valve
Design Standard: API 600
Body Material: ASTM A890 5A, ASTM B148 C95800, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A.
Nominal Size: 42 Inch, DN1050
Nominal Class: 600 LB, PN100
Structure: Bolted Bonnet/Pressure Seal Bonnet
Bore Type: Standard Bore(API 600)
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Face to Face: ASME B16.10
End Connection: RF Flanged
Test and Inspection: API 598

Key Features

1. OS&Y (Outside Screw and Yoke) design for reliable operation.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Seat Types: Metal Seat Gate Valve(hard faced), Resilient Gate Valve(rubber seat) Bonnet

Next: ASTM A216 WCB Gate Valve, API 600, 48 Inch, ANSI CL 600 LB

Previous: ASTM A890 4A Gate Valve, API 600, 40 Inch, 600 LB, OS&Y

Similar Products

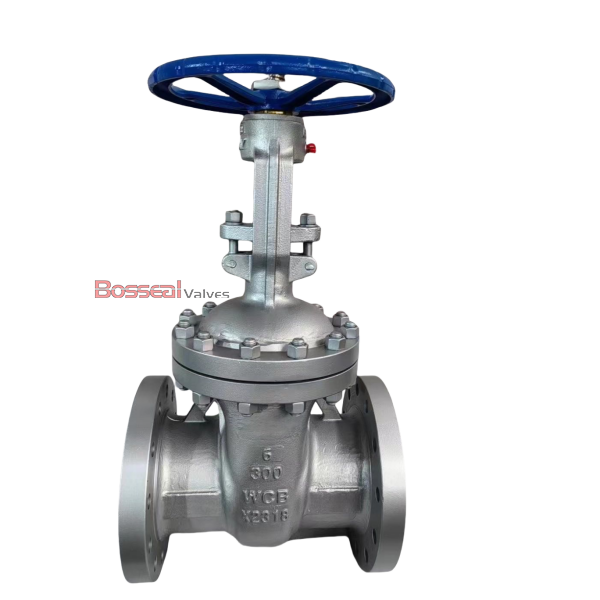

ASTM A890 5A Gate Valve, API 600, 42 Inch, 300 LB, OS&Y
