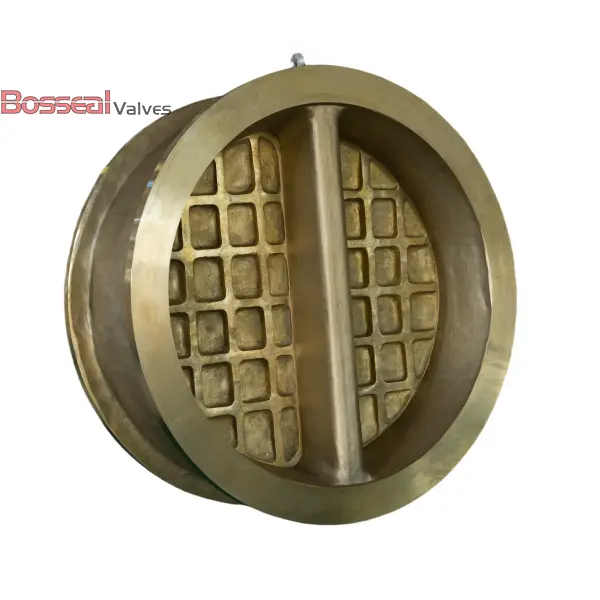

ASTM B148 C95800 Double Door Check Valve, API 594, 24 Inch

Name: ASTM B148 C95800 Double Door Check Valve, API 594, 24 Inch
SKU: cv-187303013
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Home/Products/Check Valves/Dual Plate Check Valve/ASTM B148 C95800 Double Door Check Valve, API 594, 24 Inch

Key Specifications / Features

Model No. : CV-187303013

Our double door check valve, designed to API 594 standards, features a durable aluminum bronze body and disc made from ASTM B148 C95800. This 24-inch (DN600) valve is engineered for high performance, with a Class 150 LB rating and available in wafer, lug, and flanged end configurations for versatile installation options. The non-return valve design ensures efficient backflow prevention, making it ideal for a wide range of industrial applications. With its corrosion-resistant construction, this valve offers long-lasting reliability and superior protection in demanding environments.

Request a quote

Tags:

ASTM B148 C95800 Check Valve

Double Door Check Valve

API 594 Check Valve

Detail Information

Valve Description:
187303013 Dual Plate Check Valve, Double Door
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 24 Inch, DN600
Nominal Class: 150 LB, PN20
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)

Next: Dual Disc Wafer Check Valve, API 594, C95800, 26 IN, 150 LB

Previous: Aluminum Bronze Double Disc Check Valve, 20 IN, CL150, Wafer
