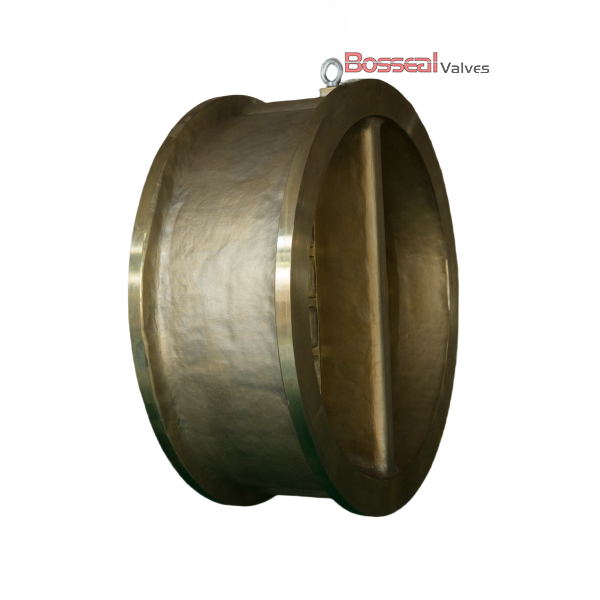

Dual Disc Wafer Check Valve, API 594, C95800, 26 IN, 150 LB

Name: Dual Disc Wafer Check Valve, API 594, C95800, 26 IN, 150 LB
SKU: cv-187303014
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CV-187303014

As a leading provider of dual disc check valves from China, we offer a high-performance solution built to API 594 standards. This 26-inch valve features a durable aluminum bronze body and disc made from ASTM B148 C95800, ensuring superior strength and corrosion resistance. Rated for Class 150 LB, it is available with wafer, lug, or flanged ends for flexible installation. The valve is equipped with NBR, Viton, or EPDM seat options, providing excellent sealing performance across various applications. Perfect for industries demanding reliability and long-term service in harsh conditions.

Request a quote

Tags:

Dual Disc Check Valve

Wafer Check Valve

API 594 Check Valve

Detail Information

Valve Description:
187303014 Dual Plate Check Valve, Dual Disc
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 26 Inch, DN650
Nominal Class: Class 150 LB
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
