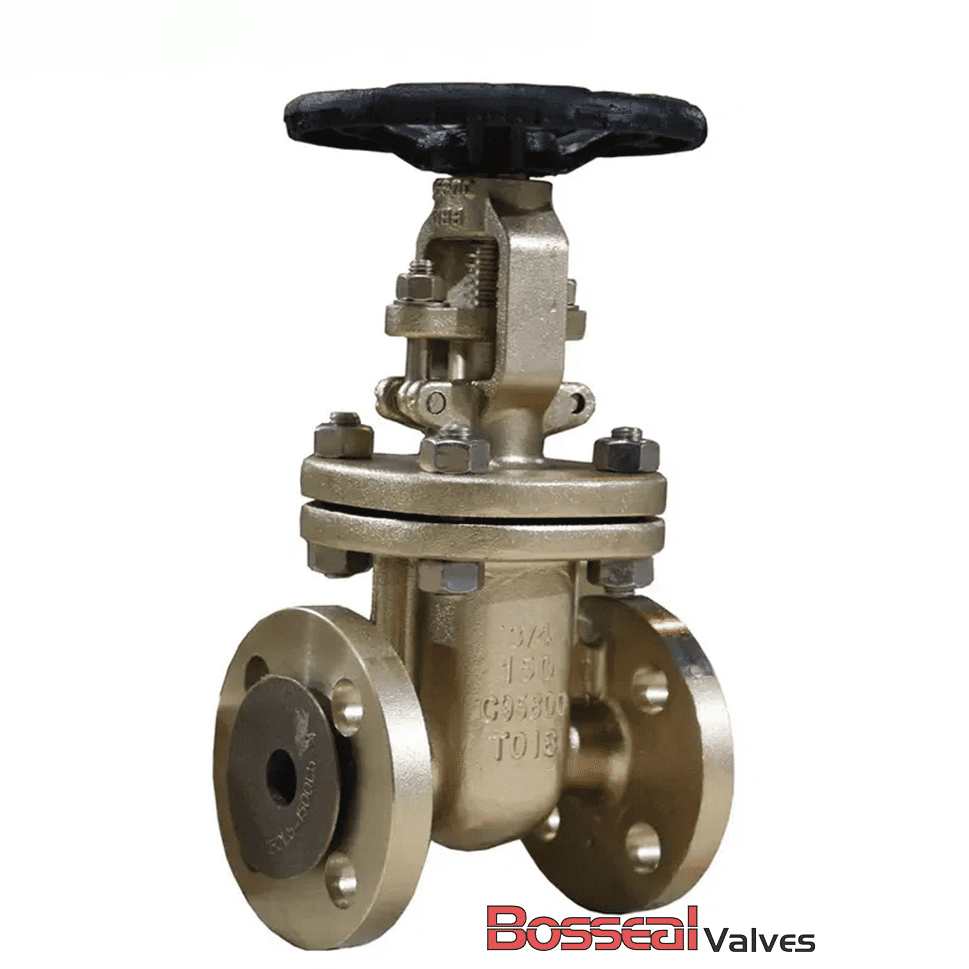

Bolted Bonnet Gate Valves, Al-Bronze C95800, 6 Inch, CL150

Key Specifications / Features

Model no. : GTV-187304005

We are a reliable supplier of bolted bonnet gate valves, designed to API 600 standards. This 6-inch valve features a robust aluminum bronze body and trim made from ASTM B148 C95800, offering superior corrosion resistance in marine and industrial environments. It is rated for Class 150 LB service and includes a flexible wedge for improved sealing performance. Available with either flat face (FF) or raised face (RF) flanged ends, the valve is operated by a handwheel for smooth and precise control. Ideal for seawater and other aggressive media applications.


Detail Information

Valve Description:
187304005 Gate Valve
Design Standard: API 600
Body Material: ASTM B148 C95800
Nominal Size: 6 Inch, DN150
Nominal Class: Class 150 LB, Class 300 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Structure: Bolted Bonnet/Pressure Seal Bonnet
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor
