BS 1873 Globe Valve, Al-bronze C95800, 2 IN, 150 LB, BB, FF

Name: BS 1873 Globe Valve, Al-bronze C95800, 2 IN, 150 LB, BB, FF
SKU: glv-187305001
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GLV-187305001

We are a leading Al-bronze globe valve manufacturer in China, offering high-quality valves designed to BS 1873 standards. Our 2-inch globe valve features a durable ASTM B148 C95800 aluminum bronze body, ideal for corrosive and marine environments. It is rated for Class 150 LB pressure and comes with a bolted bonnet for secure assembly and easy maintenance. Available with flat face (FF) or raised face (RF) flanged ends, this valve ensures reliable flow regulation and long service life in demanding industrial applications. Customization options are available to meet specific project needs.

Request a quote

Tags:

BS 1873 Globe Valve

Al-bronze Globe Valve

ASTM B148 C95800 Globe Valve

Detail Information

Valve Description:
187305001 Aluminum Bronze Globe Valve
Design Standard: BS 1873, API 623
Nominal Size: 2 Inch, DN50
Nominal Class: 150 LB, PN20
Bore Type: Standard Bore
Operation: Handwheel/Gear
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: FF or RF Flanged
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 24 Inch (DN50 - DN600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF/FF
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor

Previous: Pressure Seal Bonnet Y Globe Valve, ASTM A105N, 2 IN, CL4500

Similar Products

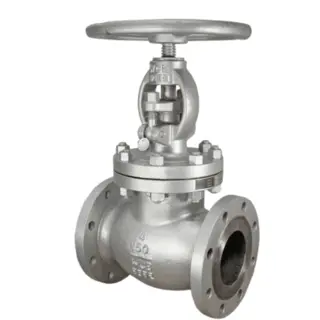

BS 1873 Globe Valve, Bolted Bonnet, 4 Inch, 150 LB, RF, WCB

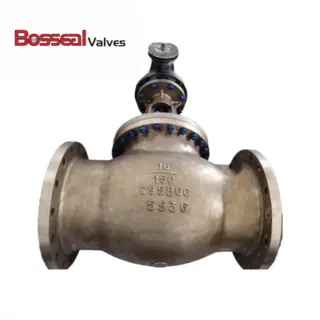

ASTM B148 C95800 T Type Globe Valve, 16 IN, 150 LB, BS 1873, RF

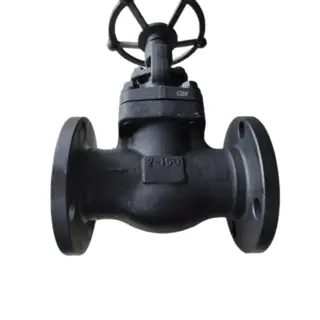

ASTM A350 LF2 Globe Valve, API 602, 2 IN, 150 LB, Trim 8, RF

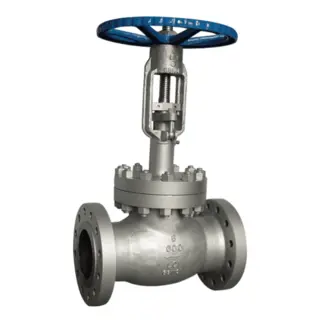

ASTM A216 WCB Bolted Bonnet Globe Valve, 8 Inch, 600 LB, RF
