Key Specifications / Features
Model No. : 6GS16RG50
Welcome to our Resilient Seated Gate Valve Factory! We offer high-quality gate valves with the following specifications: DN150, PN10, PN16, 6 Inch, 150 LB, EN 558-3, BS 5163. Our gate valves are made from durable Ductile Iron GGG50 and feature NBR/EPDM seats for excellent resilience. They come with a convenient handwheel for easy operation and are designed with EN 1092 flanged ends for seamless installation. Trust our reliable and standardized gate valves for your industrial needs.
Categories
Gate Valves
, Water Valve
Tags:
Resilient Gate Valve
, DN150 Gate Valve
, PN10 Gate Valve
.

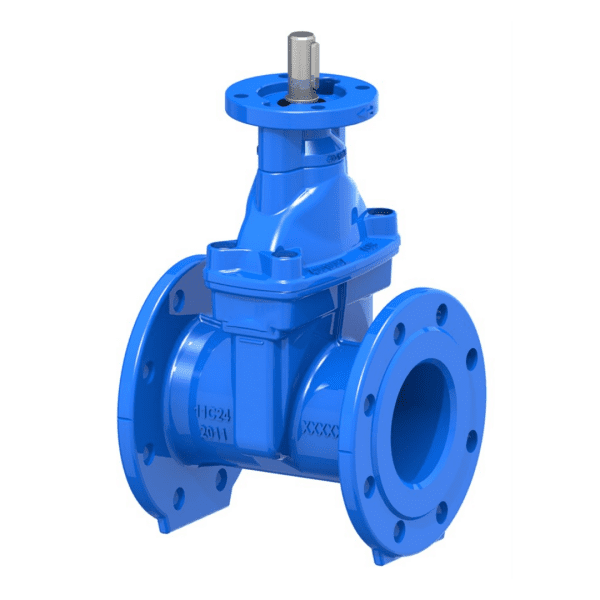

Flanged End Resilient Seated Gate Valve, PN10/16, ductile iron Body, NBR/EPDM seat, Handwheel
Valve Description:
1871004 Resilient Gate Valve 6GS16RG50
Design Standard: BS 5163, EN 558-3
Structure: Resilient Seat
Nominal size: DN150
Nominal class: PN10/16
End Connection: Flanged End, EN 1092
Operation: /
Body Material: GGG50
Trim Material: GGG5+NBR/EPDM
Face to face: EN 558 Table 2 Basic Series 3
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, Resilient seated gate valve for water and wastewater to max. 70° and max 10% solid matter, WRAS-approved materials available
Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 2 - 16 Inch (DN50 - DN400)
Pressure range: PN10, PN16
End connection: Flanged
Working temperature: up to 70℃+
Suitable Service: water, sewage, or other neutral liquids
