Key Specifications / Features
Model No. : 28GS16RG50

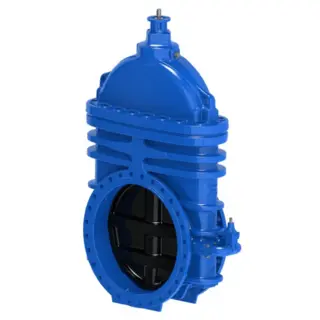

Looking for a reliable Resilient Seated Gate Valve? Our DN700, PN16 gate valve is made of high-quality Ductile Iron GGG50 material. With a size of 28 inches and a pressure rating of 150 LB, this valve conforms to EN 558-14, DIN F4, BS 5163, and EN 1074 standards. It features a convenient By-pass Valve and ISO Top Mounting for easy installation. Trust our valve for superior performance and durability.
Categories
Gate Valves
, Water Valve
Tags:
Resilient Gate Valve
, DN700 Gate Valve
, PN16 Gate Valve
.
EN 558-14/DIN F4, ISO top mounting, Resilient Seated Gate Valve, DN700, PN16, ductile iron Body, NBR/EPDM seat, Handwheel, with by-pass
Valve Description:
1871009 Resilient Gate Valve 28GS16RG50
Design Standard: BS 5163, EN 558-14, EN 1074
Structure: Resilient Seat
Nominal size: DN1000
Nominal class: PN16
End Connection: Flanged End, EN 1092, PN16, ISO 7005-2
Operation: /
Body Material: GGG50
Trim Material: GGG50+NBR/EPDM
Face to face: EN 558 Table 2 Basic Series 14, DIN 3202 - F4
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, Resilient seated gate valve for water and waste water to max. 70° and max 10% solid matter, WRAS approved materials available, with By-pass
Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 2 - 16 Inch (DN50 - DN400)
Pressure range: PN10, PN16
End connection: Flanged
Working temperature: up to 70℃
Suitable Service: water, sewage, or other neutral liquids
