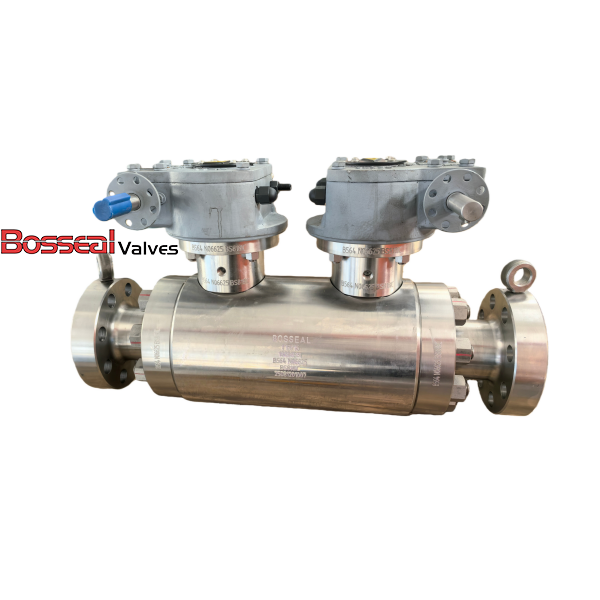

BS 5351 DBB Ball Valves, A350 LF2, 2-1/2 IN, CL150, F6A Trim

Key Specifications / Features

Model No. : 181302002

This 2-1/2 inch (DN65) Double Ball Valve is engineered to BS 5351 and API 6D standards, featuring a durable ASTM A350 LF2 body with F6A trim for excellent strength, toughness, and corrosion resistance. Rated at Class 150 LB, it is equipped with RF flanged ends and a fully welded construction to ensure leak-free performance and long service life. Designed for reliable isolation and safe operation in demanding pipeline systems, it delivers consistent control and minimal maintenance. As a leading DBB ball valve manufacturer in China, we provide proven quality for global projects.


Detail Information

Valve Description:
181302002 Trunnion Mounted Ball Valve, DBB Ball Valves
Design Standard: BS 5351, API 6D
Structure: Full Welded
Nominal Size: 2-1/2 Inch, DN65, 65mm
Nominal Class: Class 150 LB, PN20
Bore Type: Full Bore or Reduced Bore
Operation: Lever
Body Material: ASTM A105N, ASTM A350 LF2, F304, F316, F51, F53, F55, Inconel 625
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
End Connection: RF Flanged
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
