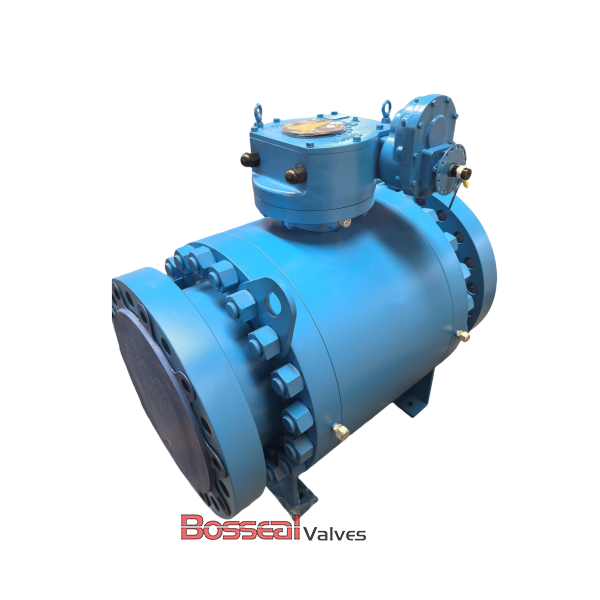

Carbon Steel Ball Valves, API 6A, 3000 PSI, 1-13/16 IN, RTJ

Key Specifications / Features

Model No. : BV-181104022

We are a trusted supplier of carbon steel ball valves in China, specializing in high-performance solutions built to API 6A standards. Our 1-13/16 inch ball valves are rated for 3000 PSI and feature a bolted bonnet design with RTJ end connections for secure sealing. Constructed from durable ASTM A694 F60 or F65 carbon steel, these valves are equipped with Inconel trim for enhanced corrosion resistance. Designed for reliability in demanding applications, they offer smooth manual control through lever operation, making them ideal for oil and gas systems requiring high pressure and robust materials.

Detail Information

Valve Description:
181104022 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Bore Type: Full Bore or Reduced Bore
Test and Inspection: API 6A
Operation: Lever/Gear/Bare Shaft
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
End Connection: RTJ, BW, and Hub
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
Bolted body with 2-piece and 3-piece construction
Double block and bleed capability
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Anti-blowout stem design for enhanced safety
Integrated anti-static devices
Ensures bubble-tight shutoff for reliable sealing

Drawing of Side-entry Ball Valve



Working Pressure of Side-entry Ball VALVE
