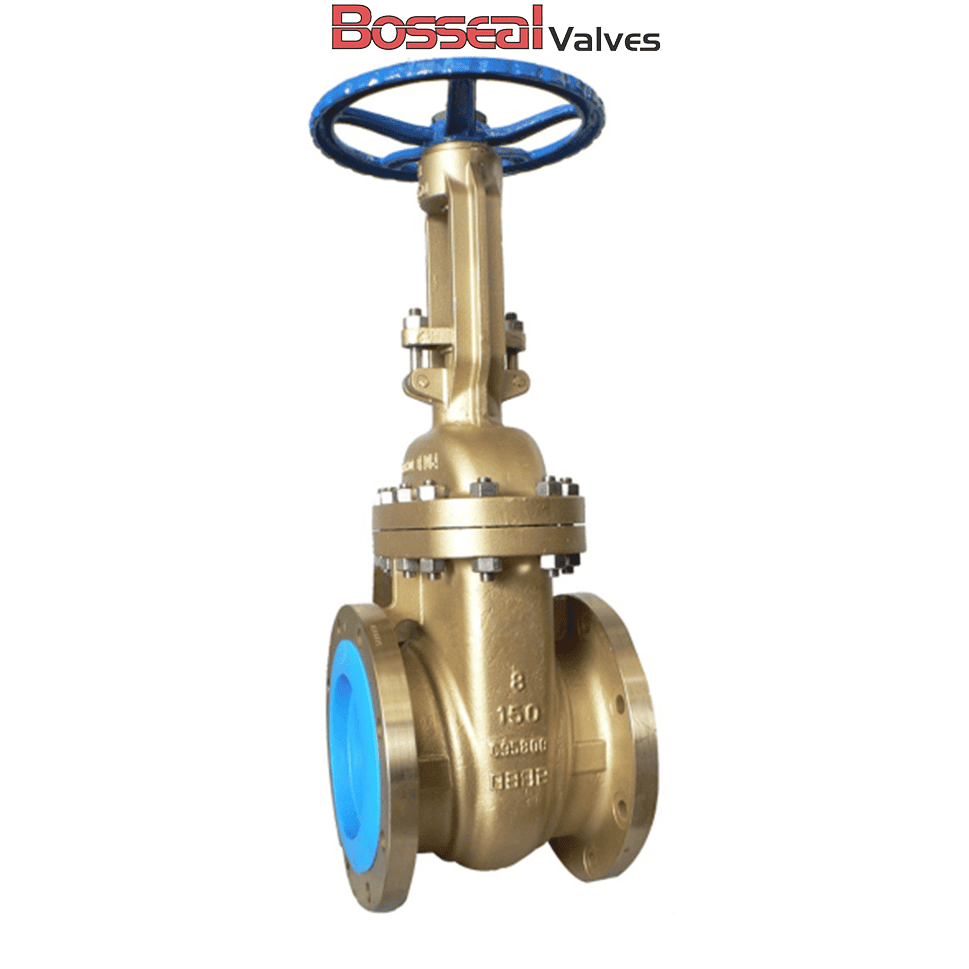

Class 150 LB Gate Valve, API 600, Aluminum Bronze, 20 Inch

Name: Class 150 LB Gate Valve, API 600, Aluminum Bronze, 20 Inch
SKU: gtv-187304012
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GTV-187304012

We are a trusted provider of aluminum bronze gate valves designed to meet API 600 specifications for high-performance flow control. This 20-inch valve features a corrosion-resistant body and trim made from ASTM B148 C95800, ideal for seawater, marine, and harsh industrial environments. It is rated for Class 150 LB and equipped with a bolted bonnet for secure sealing and easy maintenance. The valve includes an OS\&Y configuration for reliable operation and a non-rising handwheel for space-saving convenience. Raised face (RF) flanged ends ensure a secure and flexible connection in demanding applications.

Request a quote

Tags:

Class 150 LB Gate Valve

API 600 Gate Valve

Aluminum bronze Gate Valve

Detail Information

Valve Description:
187304012 Aluminum Bronze Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 20 Inch, DN500
Nominal Class: Class 150 LB, Class 300 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor

Next: API 600 Aluminum Bronze Gate Valve, C95800, 24 IN, CL150 LB

Previous: 18 Inch Gate Valves, Aluminum Bronze, C95800, CL150 LB, RF

Similar Products

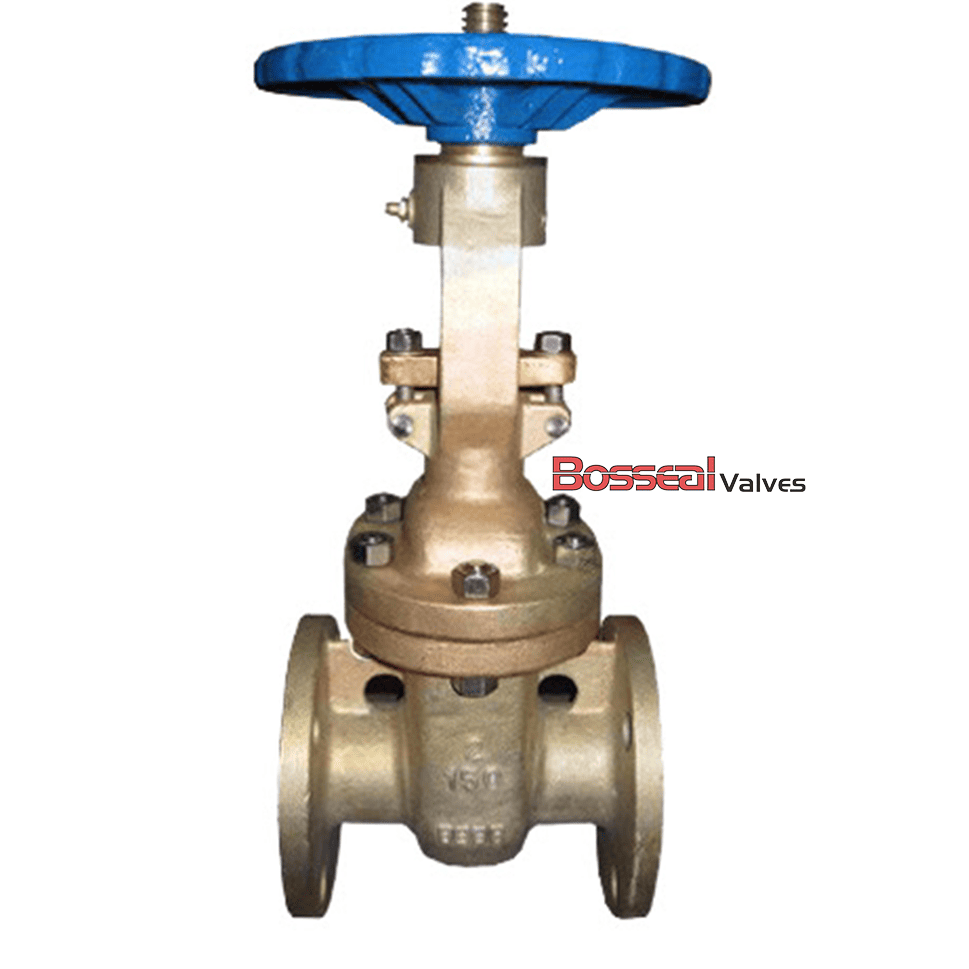

API 600 Aluminum Bronze Gate Valve, C95800, 24 IN, CL150 LB

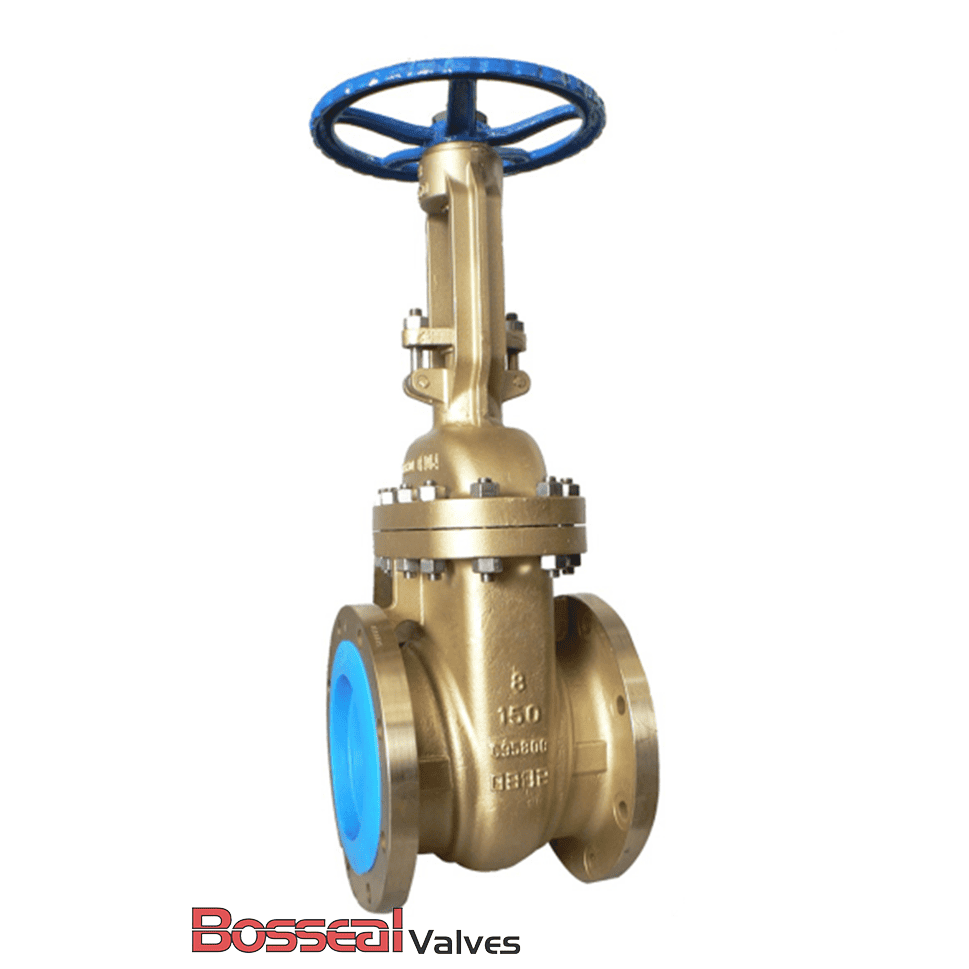

API 600 Gate Valve, ASTM B148 C95800, 8 IN, CL150 LB, PSB

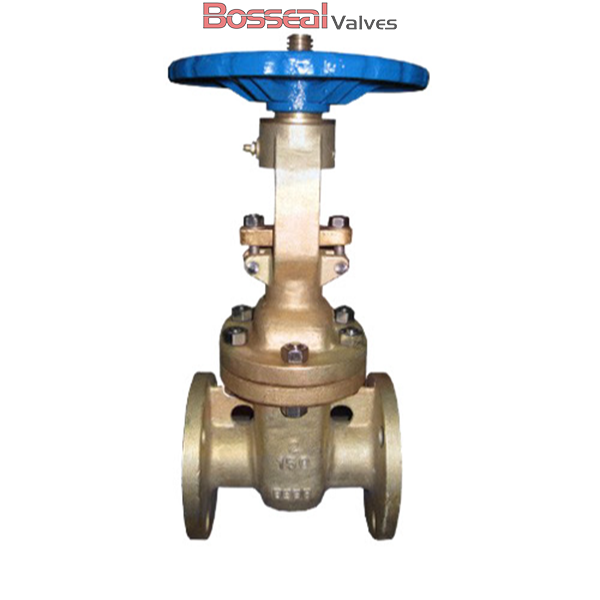

ASTM B148 C95800 Gate Valve, API 600, 3 Inches, 150 LB, RF

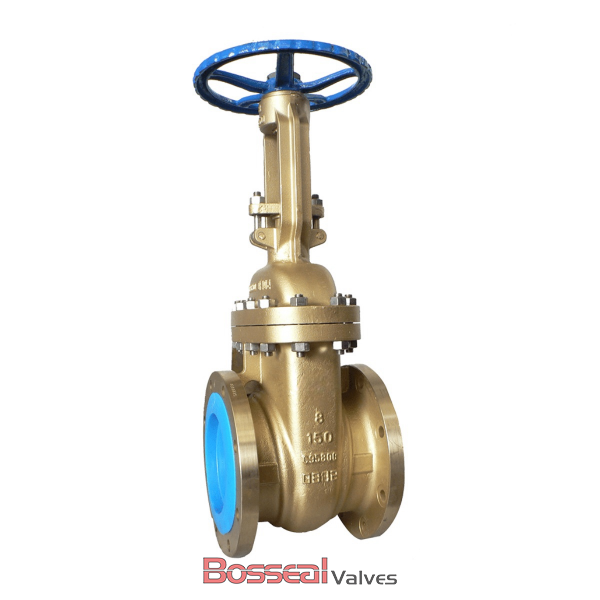

Aluminum Bronze Gate Valves, API 600, C95800, 2 Inch, CL150
