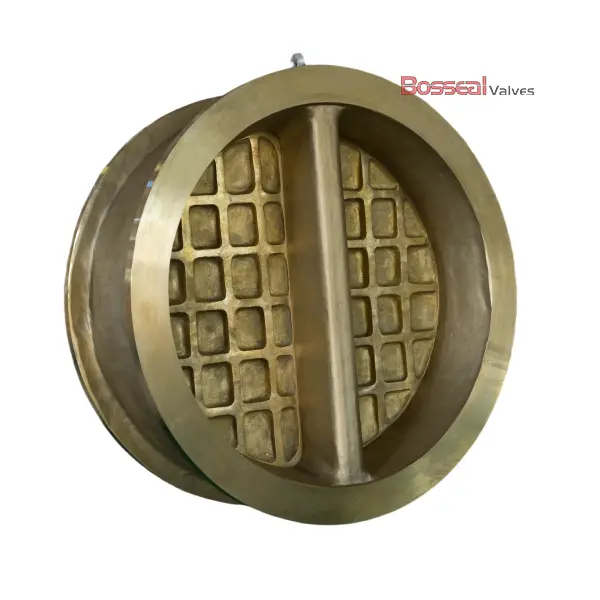

Class 300 LB Wafer Check Valve, API 594, C95800, 2-1/2 Inch

Name: Class 300 LB Wafer Check Valve, API 594, C95800, 2-1/2 Inch
SKU: cv-187303023
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CV-187303023

As a leading wafer check valve factory from China, we offer high-quality valves built to API 594 standards. This 2-1/2 inch (DN65) valve features a robust aluminum bronze body and disc made from ASTM B148 C95800, providing exceptional corrosion resistance and durability. The spring-loaded, dual plate design ensures efficient backflow prevention, while the valve is rated for Class 300 LB and PN50, ensuring reliable performance in demanding applications. Perfect for various industrial needs, this valve delivers long-lasting service and superior protection in harsh environments.

Request a quote

Tags:

Class 300 LB Check Valve

Wafer Check Valve

API 594 Check Valve

Detail Information

Valve Description:
187303023 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 300 LB, PN50
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
