Key Specifications / Features
Designed to API 6D and BS 5351 standards, this DBB trunnion ball valve features a robust ASTM A105N forged steel body with durable F304 stainless steel trim for excellent strength and corrosion resistance. With a 2-inch size, Class 1500 LB (PN250) pressure rating, and full welded construction, it ensures maximum structural integrity and zero leakage performance in high-pressure applications. The gear-operated mechanism enables smooth, precise operation, while RTJ flanged ends provide secure, high-integrity sealing for critical service conditions. Ideal for oil, gas, and petrochemical systems, it delivers long service life and reliable shutoff. As a leading DBB trunnion ball valve supplier in China, we provide consistent quality and global project support.
Valve Description:

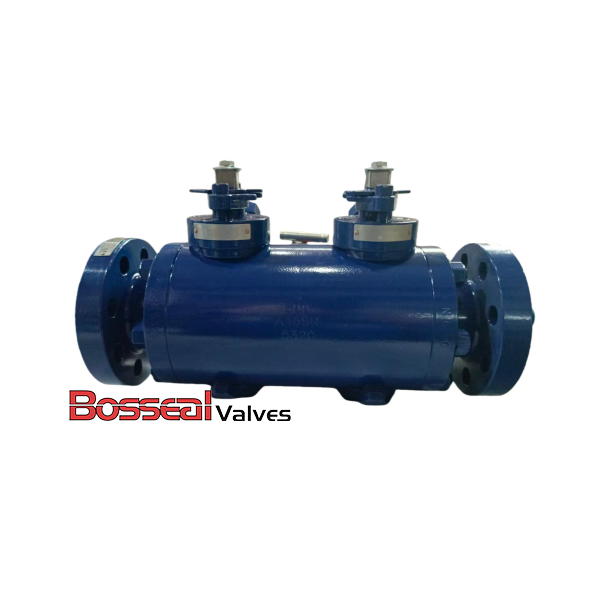

181302085 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 2 Inches
Pressure: Class 1500 LB, PN250
Body Material: ASTM A105N, ASTM A182 F316, ASTM A350 LF2, Inconel 625, ASTM A182 F53, ASTM A182 F51, ASTM A182 F55, ASTM A182 F304
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear
Structure: Full Welded
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged
Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
