Key Specifications / Features
Model No. : 6BS25JA105-DIB1
We Provide Trunnion Mounted Ball Valves, 3 PCS bodies, API 6D, 6 Inch, Class 2500 LB, Full Bore, RTJ Flanged, Gear Operation, ASTM A105N, DN150, PN420.

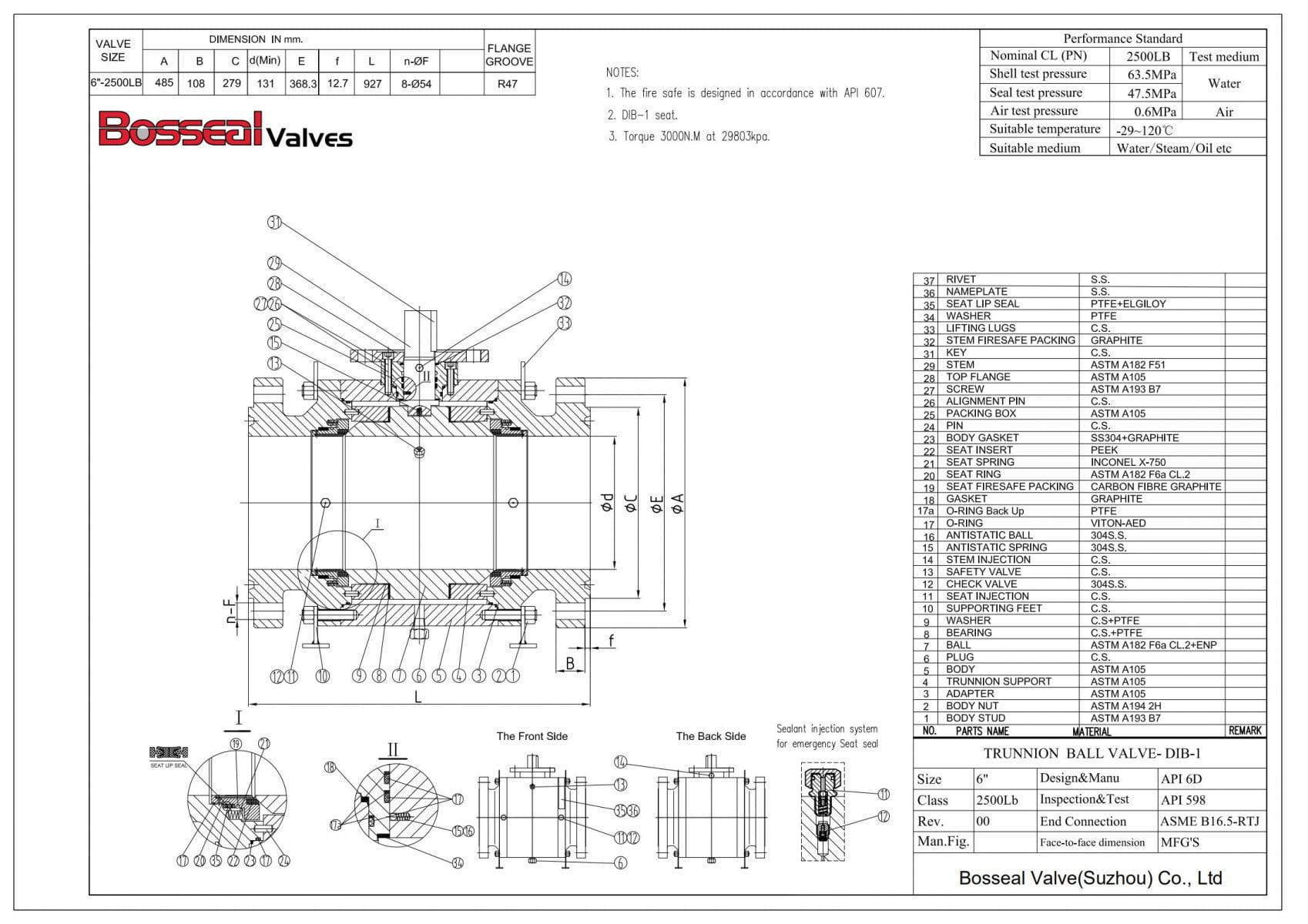

API 6D Trunnion Ball Valve, 6 Inch, 2500 LB, A105N, RTJ
Detail Information
Product Item: Trunnion Mounted Ball Valve
Model No.: 6BS25JA105-DIB1
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DPE Seats
Nominal size: 6 Inch
Nominal class: 2500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK, Lip Seal PTFE+UNS R30003
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double-Isolation and Bleed(DIB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Cavity-pressure relief valve included
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 24 Inch (DN15 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Model No.: 6BS25JA105-DIB1
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DPE Seats
Nominal size: 6 Inch
Nominal class: 2500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK, Lip Seal PTFE+UNS R30003
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double-Isolation and Bleed(DIB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Cavity-pressure relief valve included
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 24 Inch (DN15 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
