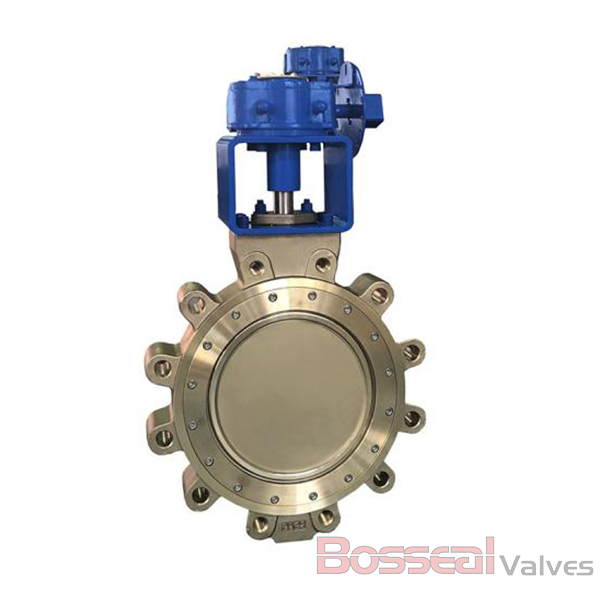

EN 593 Double Offset Butterfly Valve, C95800, CL300, 20 IN

Key Specifications / Features

Model No. : 1862359
As a leading manufacturer of lug butterfly valves, we offer double-offset designs compliant with EN 593 and API 609 Category B standards. Our 20-inch (DN500) valves are constructed from durable ASTM B148 C95800 material and feature a soft RPTFE seat for optimal sealing. Rated for Class 300 LB, these valves are equipped with a robust Monel K500 stem for enhanced corrosion resistance and long-term performance. Designed for reliability in demanding applications, these valves ensure excellent control and durability, making them ideal for industrial use in various environments.

Detail Information

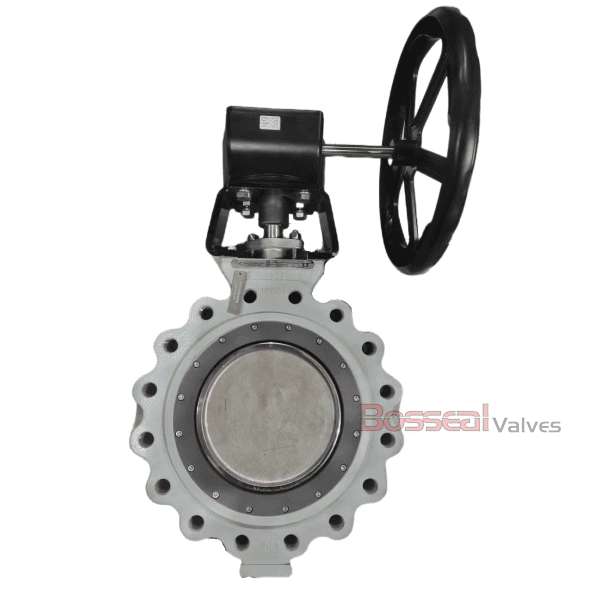

High-Performance Butterfly Valve, 20 Inch/DN500, 300 LB, Double Offset, Gear Operation.

Valve Description

1862359 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 20 Inch, DN500
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM B148 C95800, ASTM A890 5A, ASTM A890 4A, Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150-300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
