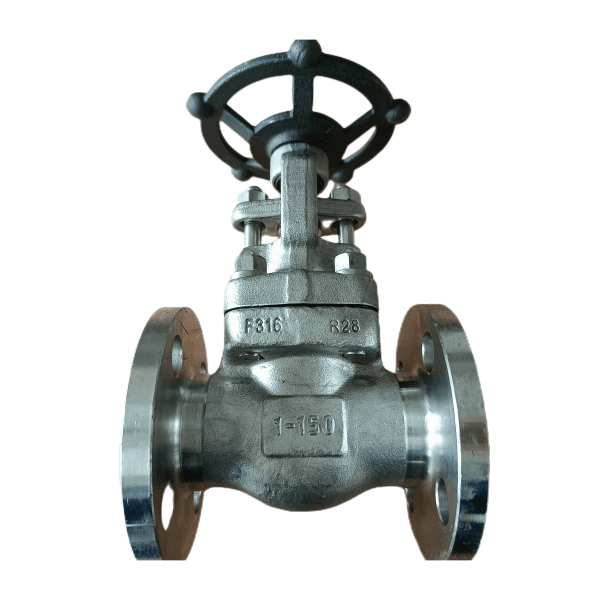

Flanged Gate Valve, API 602, ASTM A182 F316, 1 Inch, 150 LB

Key Specifications / Features
Model No. : 1G1RF31612

Get top-quality Integral Flanged Gate Valve from leading manufacturers. Our valve is made with ASTM A182 F316, featuring 1 Inch size, DN25, 150 LB, PN20 pressure rating, and complies with API 602 and ASME B16.34 standards. Designed with a Bolted Bonnet, OS & Y, and Trim 12. RF Flanged Ends ensure a secure fit. Trust us for reliable, durable, and efficient gate valves for your industrial needs.

Categories Gate Valves

Tags: API 602 Gate Valve , ASME B16.34 Gate Valve , ASTM A182 F316 Gate Valve .

Detail Information
Integral Flanged Forged Gate Valve, API 602, 1 INCH, 150 LB, RF F316 Body & Trim 12, Handwheel

Valve Description:
1851024 API 602 Forged Gate Valve 1G1RF31612
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1 Inch
Nominal class: 150 LB
Bore: Regular Bore
End Connection: RF-Flanged end
Operation: Handwheel
Body Material: ASTM A182 F316
Trim Material: ASTM A182 F316+STL.6
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland, Integral Flange

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500 LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: Handwheel



Nickname*:
E-mail*:
Rate*:
Comments*:

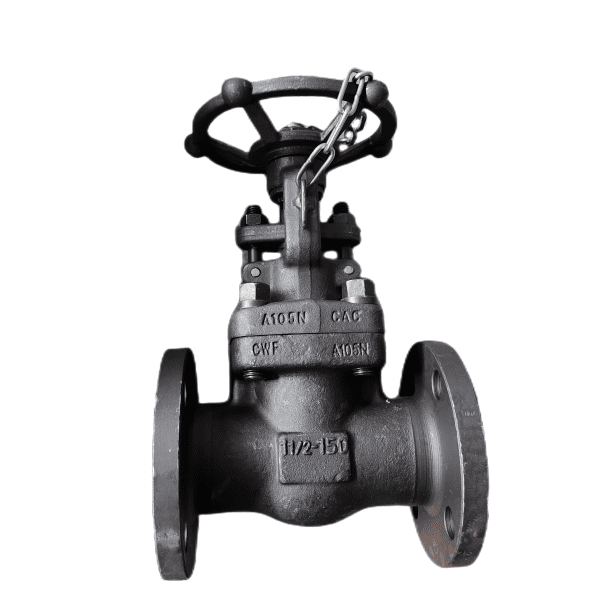

Next: API 602, ASME B16.34 Gate Valve, 1-1/2 Inch, 150 LB
