Key Specifications / Features

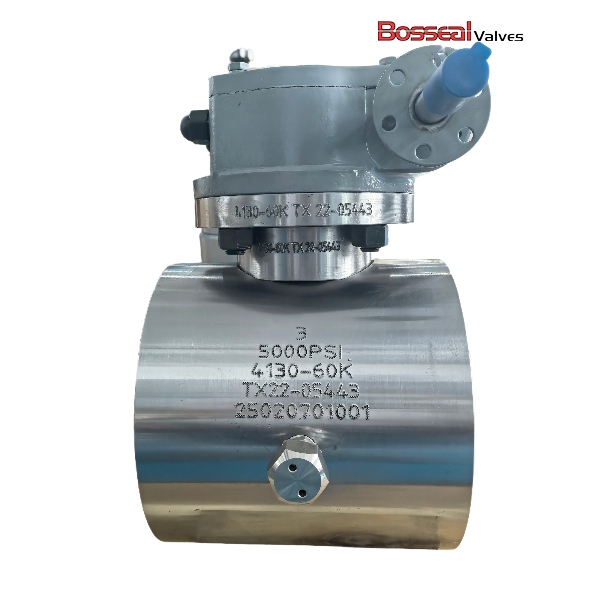

As a leading forged ball valve supplier in China, we manufacture high-performance valves engineered to meet API 6A and API 6D standards. These forged valves feature a robust one-piece (1PC) AISI 4130 body with F51 or 17-4PH trim, ensuring exceptional strength and corrosion resistance in high-pressure applications. Rated at 2500 PSI and sized at 6-5/8 inches, they are designed for precise and reliable operation. The valves incorporate soft-seated designs with optional PEEK, POM, TCC, or STL seats for enhanced sealing performance. RTJ end connections ensure secure installation, ideal for critical oil, gas, and industrial service conditions.
Valve Description:

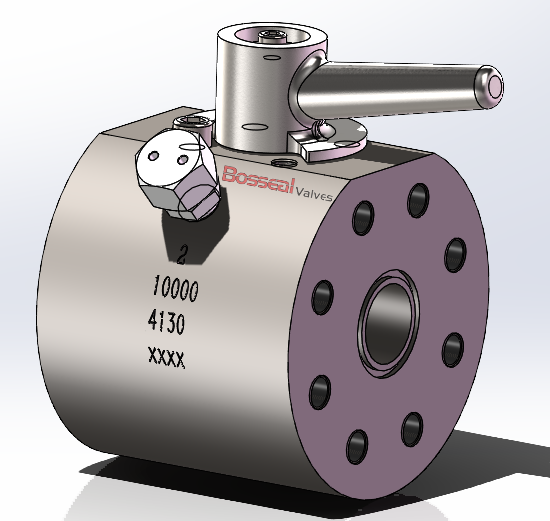

181105076 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
Test and Inspection: API 6A/API 6D
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
End Connection: RTJ, BW, and Hub
Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
