Key Specifications / Features
As a leading metal-seated ball valve manufacturer in China, we specialize in high-performance valves designed to meet API 6D standards. Our valves feature robust ASTM A694 F60/F65 bodies and durable F51, 17-4PH, or Inconel trims, ensuring excellent corrosion and wear resistance. Available in 6-3/8-inch sizes and rated up to 2500 PSI, they are suitable for demanding industrial applications. Offering versatile end connections, including RTJ and butt weld (BW), these valves can be operated manually via lever or gear, or integrated with pneumatic or electric actuators for automated control, delivering reliability and precise flow management.
Valve Description:

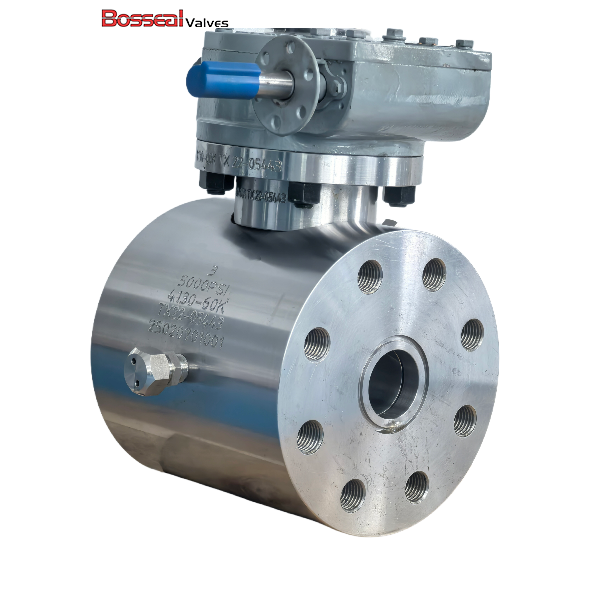

181105075 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
