Forged Steel Y Globe Valve, ASTM A182 F316, 3/4 IN, 2500 LB

Key Specifications / Features

Model No. : 1852051
We provide premium Y Pattern Globe Valves, expertly engineered for top performance in demanding applications. Crafted from forged steel and rated for Class 2500 LB pressure, our valves adhere to stringent industry standards, including ASTM A182 F316, API 602, and ASME B16.34. The 3/4 inch valve features a Y pattern design that optimizes flow control by minimizing pressure drop and reducing turbulence. It comes with Butt Weld (BW) ends for strong, reliable connections, an Outside Screw and Yoke (OS&Y) mechanism for precise control, and a bolted bonnet for hassle-free maintenance. Its compact, space-efficient design makes it perfect for tight installations. Combining durability with cutting-edge engineering, our Y Pattern Globe Valve ensures exceptional performance and is ideal for effective fluid management and control.

Detail Information

Forged Steel Y Globe Valve, ASME B16.34, ASTM A182 F316, 3/4 Inch, ANSI 2500, OS&Y, Butt Weld End.

Valve Description: 1852051 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bonnetless, Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet
Nominal Size: 3/4 Inch
Nominal Class: Class 2500 LB, PN420
Bore Type: Reduced
Face to Face: MFG'S
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Operation: Handwheel
Test and Inspection: API 598
Applications: Oil and Gas Industry, Water Treatment Plants, Power Generation, Chemical Processing.
Benefits: Reduced Pressure Drop, Less Turbulence, Improved Flow Control, Space-Efficient.
Body Material: ASTM A182 F316, ASTM A182 F11, ASTM A105N, ASTM A182 F22, ASTM A182 F91
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)


Key Features:

1. Rising Stem with Handwheel for Precision Control
2. Compact, Robust Construction for High-Temperature and High-Pressure Environments
3. Outside Screw & Yoke (OS&Y) for Enhanced Operation
4. Y-Pattern Design for Efficient Flow Management
5. Live Load Packing for Superior Sealing
6. Backseat for Additional Leak Prevention
7. Options: Swivel, Plug, or Needle Disc


Product Portfolio:

Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
Working Temperature: -29°C to +525°C
Operation: Manual or Actuated
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)

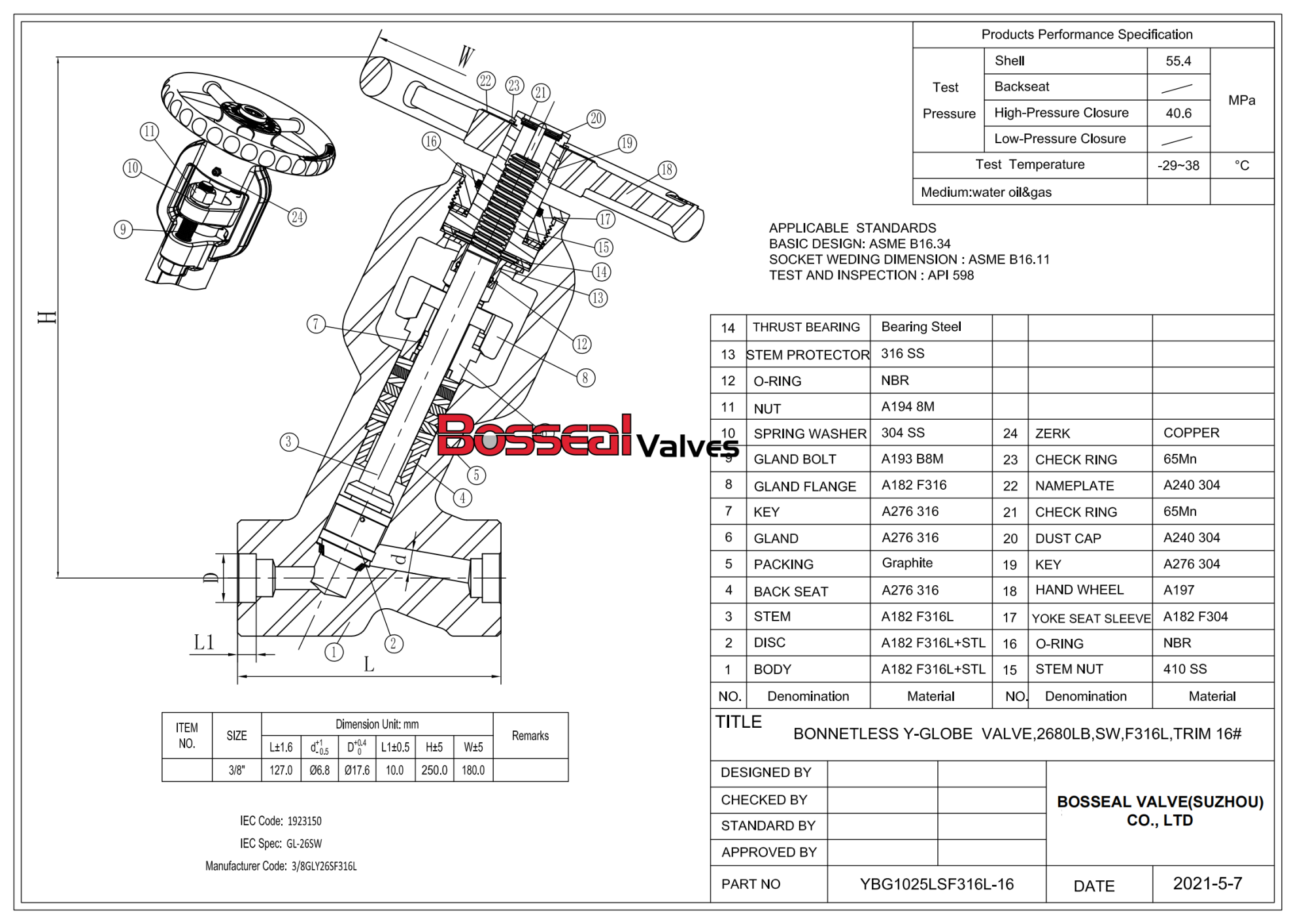

drawing for globe valve
