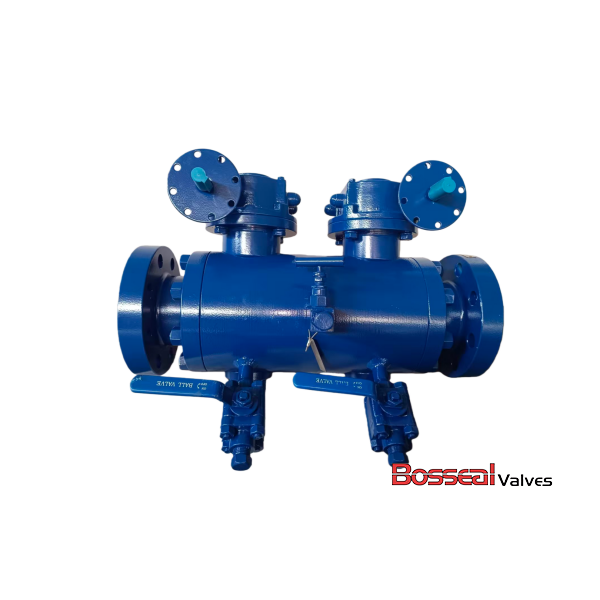

Forged Trunnion Ball Valves, Inconel 625, 12 IN, CL1500, RTJ

Key Specifications / Features

Model No. : 181302092

This Double Block & Bleed (DBB) Ball Valve is expertly crafted with an Inconel 625 body and F316 trim, designed to withstand extreme pressures and corrosive environments. Measuring 12 inches (DN300) and rated Class 1500 LB / PN250, it features RTJ flanged ends for secure, leak-tight connections. The trunnion-mounted ball design ensures smooth operation, minimal torque, and exceptional sealing performance under demanding industrial conditions. Equipped with gear operation, this valve allows precise and reliable control in high-pressure pipelines. As a leading Forged Trunnion Ball Valve Supplier in China, we provide durable, high-performance solutions engineered for critical applications worldwide.


Detail Information

Valve Description:
181302092 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 12 Inch, DN300
Pressure: Class 1500 LB, PN250
Body Material: Inconel 625, ASTM A182 F53, ASTM A182 F316, ASTM A105N, ASTM A350 LF2, ASTM A182 F51, ASTM A182 F55, ASTM A182 F304
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear
Structure: Full Welded
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
