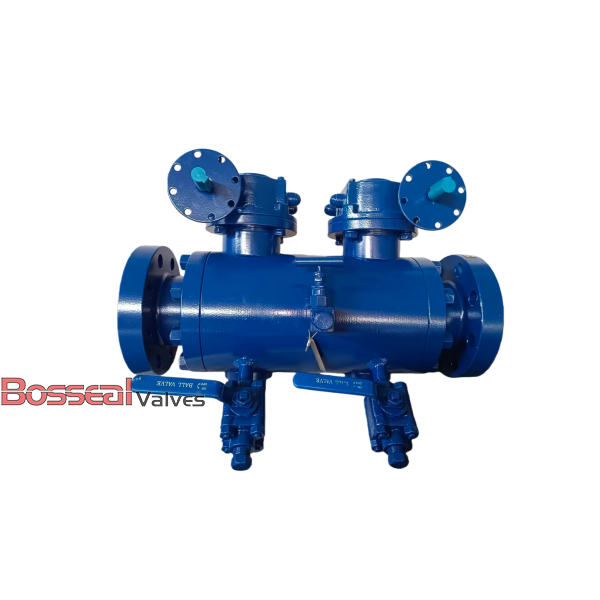

Full Welded DBB Ball Valve, F51, 24 IN, 900 LB, RTJ Flanged

Key Specifications / Features

Model No. : 181302076

This Full Welded Trunnion Mounted Ball Valve is built to API 6D and BS 5351 standards, offering robust performance for high-pressure applications. Featuring an ASTM A182 F51 body, this 24-inch (DN600) valve is designed for superior corrosion resistance and long-lasting durability. With a Class 900 LB pressure rating and RTJ flanged ends, it ensures secure and leak-proof connections. Ideal for industries requiring reliable and efficient flow control, this valve guarantees optimal performance in demanding environments. As a leading Double Block & Bleed Ball Valve manufacturer in China, we provide high-quality valves that meet international standards for superior reliability and safety.


Detail Information

Valve Description:
181302076 DBB Ball Valves, Trunnion Mounted
Design Standard: API 6D, BS 5351
Sizes: 24 Inch, DN600, 600 mm
Pressure: Class 900 LB, PN150
Structure: Full Welded
Body Material: ASTM A182 F51, ASTM A182 F304, ASTM A105N, Inconel 625, ASTM A182 F53, F316, ASTM A350 LF2, ASTM A182 F55
Bore Type: Full Bore or Reduced Bore
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
End Connection: RTJ Flanged
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
