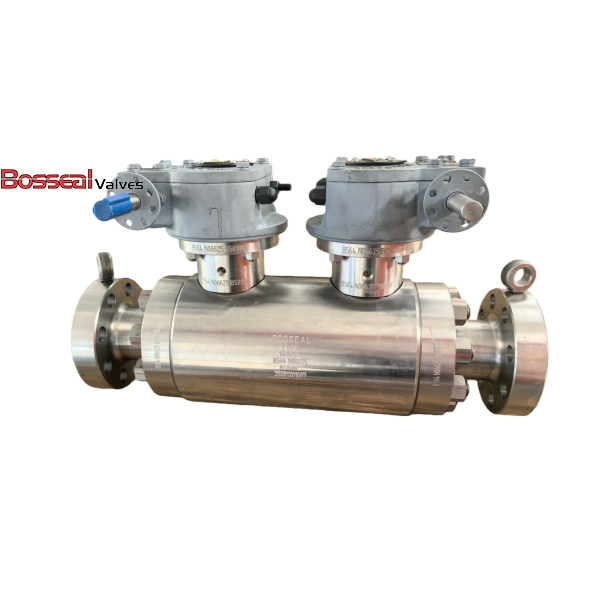

ASTM A182 F53 Double Ball Valves, API 6D, 26 Inch, CL900 LB

Key Specifications / Features

Model No. : 181302077

The 26-inch Trunnion Mounted Ball Valve is designed for high-performance applications, featuring an API 6D design with an ASTM A182 F53 body and trim. This valve is rated for Class 900 LB pressure and comes with full welded construction and RTJ flanged ends, ensuring a secure and leak-tight seal. With a size of DN650 (650 mm), it is ideal for heavy-duty industrial applications that require durability and reliability under high-pressure conditions. As a leading Double Ball Valves Manufacturer from China, we offer this valve for efficient and safe fluid control, designed to meet the highest industry standards.


Detail Information

Valve Description:
181302077 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 26 Inch, DN650, 650 mm
Pressure: Class 900 LB, PN150
Body Material: ASTM A182 F53, ASTM A182 F316, ASTM A350 LF2, Inconel 625, ASTM A105N, ASTM A182 F51, ASTM A182 F55, ASTM A182 F304
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55, A105+ENP, LF2+ENP
Structure: Full Welded
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear
End Connection: RTJ Flanged
Bore Type: Full Bore or Reduced Bore

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
