Metal Seat Zero Leakage Trunnion Ball Valve, API 6D, 2 Inch

Key Specifications / Features
Model No. : 2BSM6JWCB

Get superior performance with our Metal Seat Zero Leakage Trunnion Mounted Ball Valve, designed to API 6D standards. This valve boasts a durable 2 Inch 600 LB RTJ, with 2pcs Casting WCB body and F316+STL Ball & Seat. The bare shaft with ISO 5211 Top Mounting ensures seamless compatibility with a diverse range of systems. Invest in superior valve technology today.

Categories Trunnion Mounted Ball Valve

Tags: 2 Inch Ball Valve , Class 600 LB Ball Valve , RTJ Ball Valve .

Detail Information
Metal Seat Zero Leakage Trunnion Mounted Ball Valve, API 6D, 2 Inch 600 LB RTJ, 2pcs Casting WCB body, F316+STL Ball & Seat, bare shaft with ISO 5211 Top Mounting

Valve Description:
1811016 Trunnion Mounted Ball Valve 2BSM6JWCB
Design Standard: API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Metal Seat
Nominal size: 2 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Bare Stem
Body Material: ASTM A216 WCB
Trim Material: F316+STL ball&seat metal seated
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe API 607/6FA, Anti-Blowout Stem, Emergency sealant injection, Tight Shutoff

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

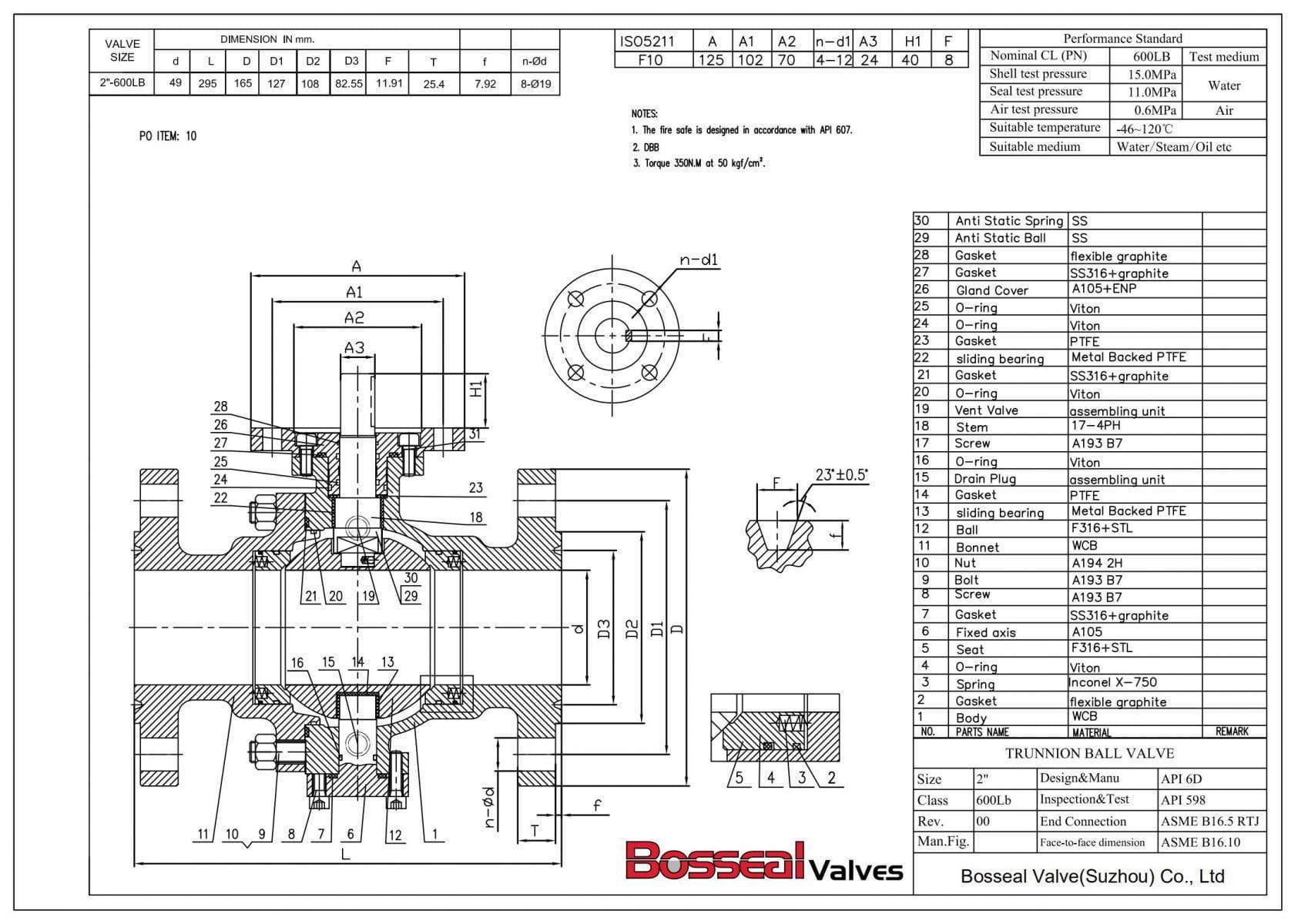

Zero Leakage Trunnion Mounted Ball Valve Tech Drawing
