Key Specifications / Features
Model No. : CBV-181105058

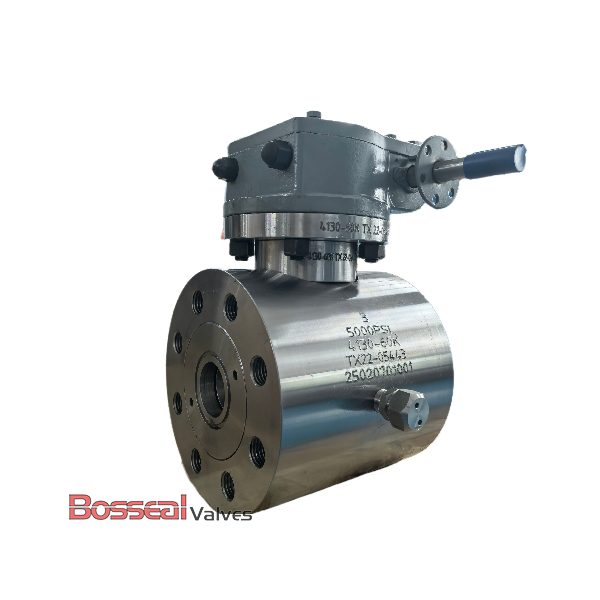

Our metal-seated ball valves are designed for high-performance applications in the oil, gas, and petrochemical industries. Manufactured in China to API 6A and API 6D standards, they feature a durable ASTM A694 F60 or F65 body with AISI 4140 or F51 trim for exceptional strength and corrosion resistance. The valves are sized at 9 inches and rated for 5000 PSI, ensuring reliable operation under extreme conditions. Equipped with RTJ end connections and an ISO 5211 mounting pad, these valves provide secure installation and compatibility with actuators, offering long-lasting durability and precise flow control for demanding pipeline systems.
Valve Description:
181105058 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Operation: Lever/Gear/Bare Shaft
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D
Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
