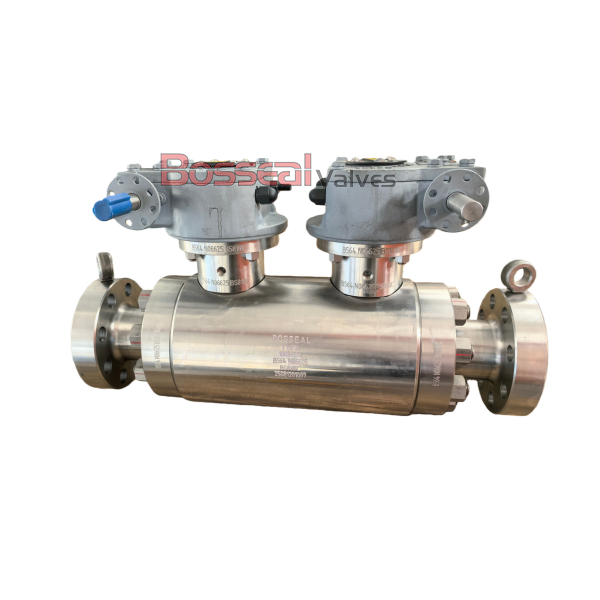

Modular DBB Ball Valves, API 6D, A182 F304, 18 IN, CL900 LB

Key Specifications / Features

Model No. : 181302074

Trunnion mounted ball valve engineered in accordance with API 6D standards, featuring a fully welded construction with an ASTM A182 F304 stainless steel body and trim for excellent corrosion resistance and mechanical strength. This 18-inch valve, DN450 (450 mm), is rated for Class 900 LB service and supplied with RTJ flanged ends to ensure reliable sealing in high-pressure applications. The trunnion-mounted design reduces operating torque and enhances sealing stability, making the valve ideal for critical pipeline systems. As a leading modular DBB ball valves factory from China, we provide durable, high-performance solutions tailored to demanding industrial requirements.


Detail Information

Valve Description:
181302074 DBB Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Sizes: 18 Inches, DN450, 450 mm
Pressure: Class 900 LB, PN150
Structure: Full Welded
Body Material: ASTM A182 F304, ASTM A105N, Inconel 625, ASTM A182 F53, F316, ASTM A350 LF2, ASTM A182 F51, ASTM A182 F55
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55, A105+ENP, LF2+ENP
Bore Type: Full Bore or Reduced Bore
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Operation: Gear
End Connection: RTJ Flanged

Key Features: Double Block & Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, Double Ball/Twin Ball

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator


DESIGN FEATURES:
• Renewable solid wedges.
• Integral seats.
• High-Tensile bronze alloy stem.
• Stems are rotating/rising design.
• Each valve is shell and seat pressure tested per industry standard MSS SP-80.
