Pressure Seal Bonnet Gate Valve, API 600, B148 C95800, 16 IN

Name: Pressure Seal Bonnet Gate Valve, API 600, B148 C95800, 16 IN
SKU: gtv-187304031
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : GTV-187304031

As a trusted supplier of Pressure Seal Bonnet Gate Valves, we offer products designed to API 600 standards and manufactured from high-quality aluminum bronze ASTM B148 C95800. This 16-inch (DN400) valve is rated for Class 300 LB service and features an OS&Y (Outside Screw and Yoke) configuration for reliable operation. Available with flat face (FF) or raised face (RF) flanged ends, it ensures secure and leak-proof connections in demanding applications. Built for durability and performance in harsh environments, this valve is ideal for marine, offshore, and corrosive service systems.

Request a quote

Tags:

Pressure Seal Bonnet Gate Valve

API 600 Gate Valve

ASTM B148 C95800 Gate Valve

Detail Information

Valve Description:
187304031 Aluminum Bronze Gate Valve.
Design Standard: API 600
Body Material: ASTM B148 C95800
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 16 Inch, DN400
Nominal Class: Class 300 LB, PN50
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Al-bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor

Next: Non-rising Stem Gate Valves, API 600, Al-bronze, 18 IN, PSB

Previous: Al-bronze Gate Valves, API 600, C95800, 14 Inch, CL300, OS&Y

Similar Products

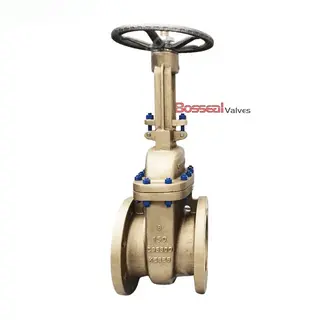

API 600 Rising Stem Gate Valves, C95800, 40IN, 300 LB, PSB

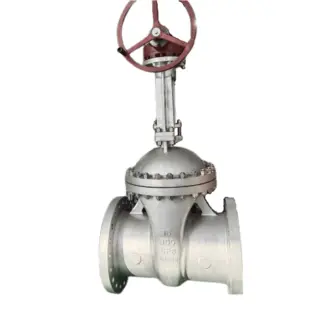

API 600, API 603 Gate Valve, 16 Inch, 300 LB, ASTM A351 CF8

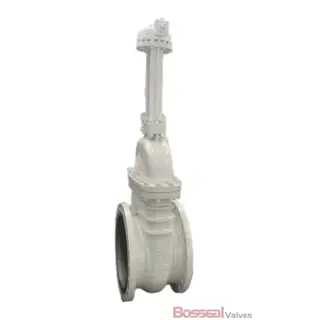

Flexible Wedge Gate Valve, API 600, 16 IN, 300 LB, A351 CF8

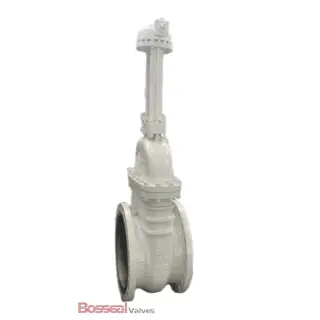

Pressure Seal Bonnet Gate Valve, ASTM A351 CF8, 16 IN, 150 LB
