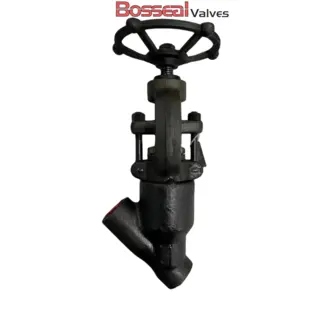

ASTM A182 F11 Globe Valve, ASME B16.34, 1/2 IN, 1500 LB, BW

Key Specifications / Features

Model no. : 0.5GLP15BF1105

Discover high-quality ASTM A182 F11 Globe Valve at our factory, available in 1/2 inch (DN15) size, rated for 1500 LB (PN250) pressure. Engineered to API 602 and ASME B16.34 standards with F6A+STL.6 Trim 5 configuration, featuring a Handwheel, Pressure Seal Bonnet, OS & Y design, and Butt Weld (BW) connection.


Detail Information

Pressure Seal Forged Globe Valve, ASME B16.34, 1/2 INCH, 1500 LB, BW, A182 F11 Body, Trim 5, Handwheel

Valve Description:
1852020 API 602 Forged Globe Valve 0.5GLP15BF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS&Y
Nominal size: 1/2 Inch
Nominal class: 1500 LB
Bore: Regular Bore
End Connection: Butt Weld
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL.6, Trim 5
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid Disc, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: Handwheel
