Key Specifications / Features
Model No. : 1811141
Discover top-quality RTJ Flanged Ball Valves from a trusted provider. Our selection includes Trunnion Mounted valves with 3 PC design, ideal for 12-inch piping systems at 900 LB pressure rating. Designed to meet DN300 and PN150 standards, crafted from ASTM A105N and ASTM A350 LF2 materials, complying with BS 5351 and API 6D regulations. Featuring a Bolted Bonnet and Gear operation for seamless functionality.
Categories
Trunnion Mounted Ball Valve
Tags:
12 Inch Ball Valve
, Class 900 LB Ball Valve
, API 6D Ball Valve
.

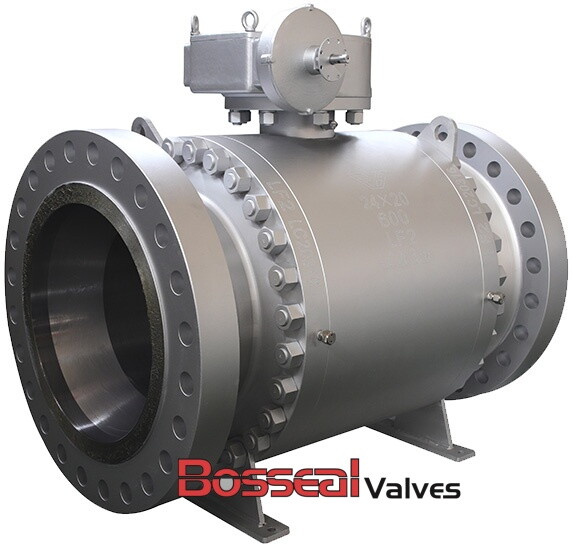

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 12 INCH, 900 LB, RTJ, DEVLON seat, Gear Operation
Valve Description:
1811141 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 12 Inch
Nominal class: 900 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
