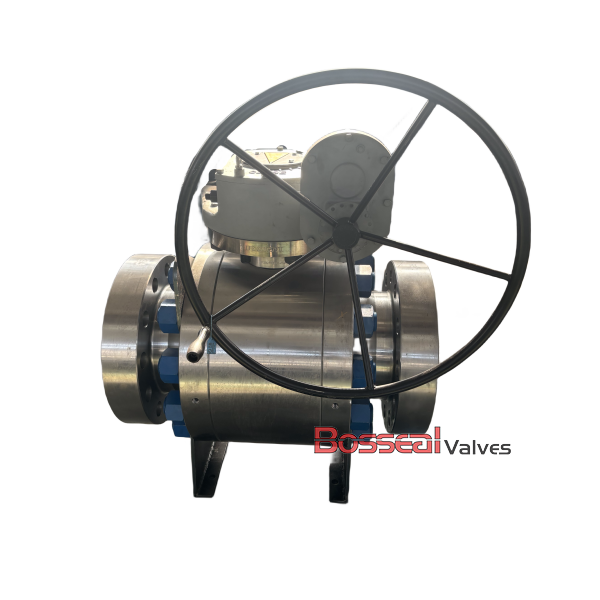

Side Entry Ball Valves, AISI 4130, 4-1/8 Inches, 3000 PSI

Key Specifications / Features

Model No. : BV-181104028

We are a specialized manufacturer of side-entry ball valves, delivering robust solutions built to API 6A standards. Our 4-1/8 inch valves are rated for 3000 PSI and feature a high-strength body made from AISI 4130 or ASTM A694 F65 alloy steel. Designed with a bolted bonnet for secure sealing, these valves offer seat options in PEEK, TCC, or STL to meet various service requirements. The internal trim, crafted from 17-4PH or Inconel, provides excellent corrosion and wear resistance. RTJ end connections ensure leak-tight integration, making them ideal for critical oil and gas applications.

Detail Information

Valve Description:
181104028 API 6A Ball Valve
Design Standard: API 6A
Structure: Bolted Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000 PSI-15000 PSI
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65
Operation: Lever/Gear/Bare Shaft
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: PEEK or Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission(Optional), DIB (Optional), full welded bonnet, SPE and DPE Seat Design (SPE x SPE, DIB-1, DIB-2), Bubble-Tight Shut-Off

Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000 PSI - 15000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

Design Features:
Bolted body with 2-piece and 3-piece construction
SPE and DPE seat configurations (SPE x SPE, DIB-1, DIB-2)
Available with metal-to-metal or soft seat options
Double block and bleed capability
Integrated anti-static devices
Anti-blowout stem design for enhanced safety
Ensures bubble-tight shutoff for reliable sealing

Drawing of Side Entry Ball Valve
