Y Pattern Globe Valves, A182 F316, 4500 LB, 1/2 IN, API 602

Key Specifications / Features

Model No. : 1852060
As a leading exporter of Y-Pattern Globe Valves from China, we provide a valve that meets API 602 and ASME B16.34 standards, crafted from ASTM A182 F316 stainless steel. This 1/2-inch valve features a Class 4500 LB pressure rating, ensuring robust performance in high-pressure applications. It is designed with an OS&Y (Outside Screw & Yoke) configuration and a pressure seal bonnet for enhanced sealing and reliability. The butt weld end offers a secure connection, while the compact and durable body is engineered to withstand high-temperature and high-pressure environments. Additionally, the valve includes a rising stem with handwheel for precise control and easy operation. Our Y-Pattern Globe Valve is ideal for demanding service conditions, combining advanced construction with dependable functionality.

Detail Information

ASME B16.34 Y Globe Valve, 1/2 Inch, 4500 LB, Pressure Seal Bonnet, F316 Body, for Power Plant.

Valve Description: 1852060 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet, Bonnetless
Nominal Size: 1/2 Inch
Nominal Class: 4500 LB, PN750
Bore Type: Reduced
Body Material: ASTM A182 F316, ASTM A105N, ASTM A182 F11, ASTM A182 F22, ASTM A182 F91
Applications: Oil and Gas Industry, Power Generation, Chemical Processing, Water Treatment Plants.
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Operation: Handwheel
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Face to Face: MFG'S
Test and Inspection: API 598
Bonnet Types: Y Globe Valves can feature various bonnet designs, such as bolted or welded, depending on the application and pressure requirements.


Key Features:

Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service


Product Line:

Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
Operation: Manual or Actuated
End Connection: BW/SW/NPT
Working Temperature: -29°C to +525°C

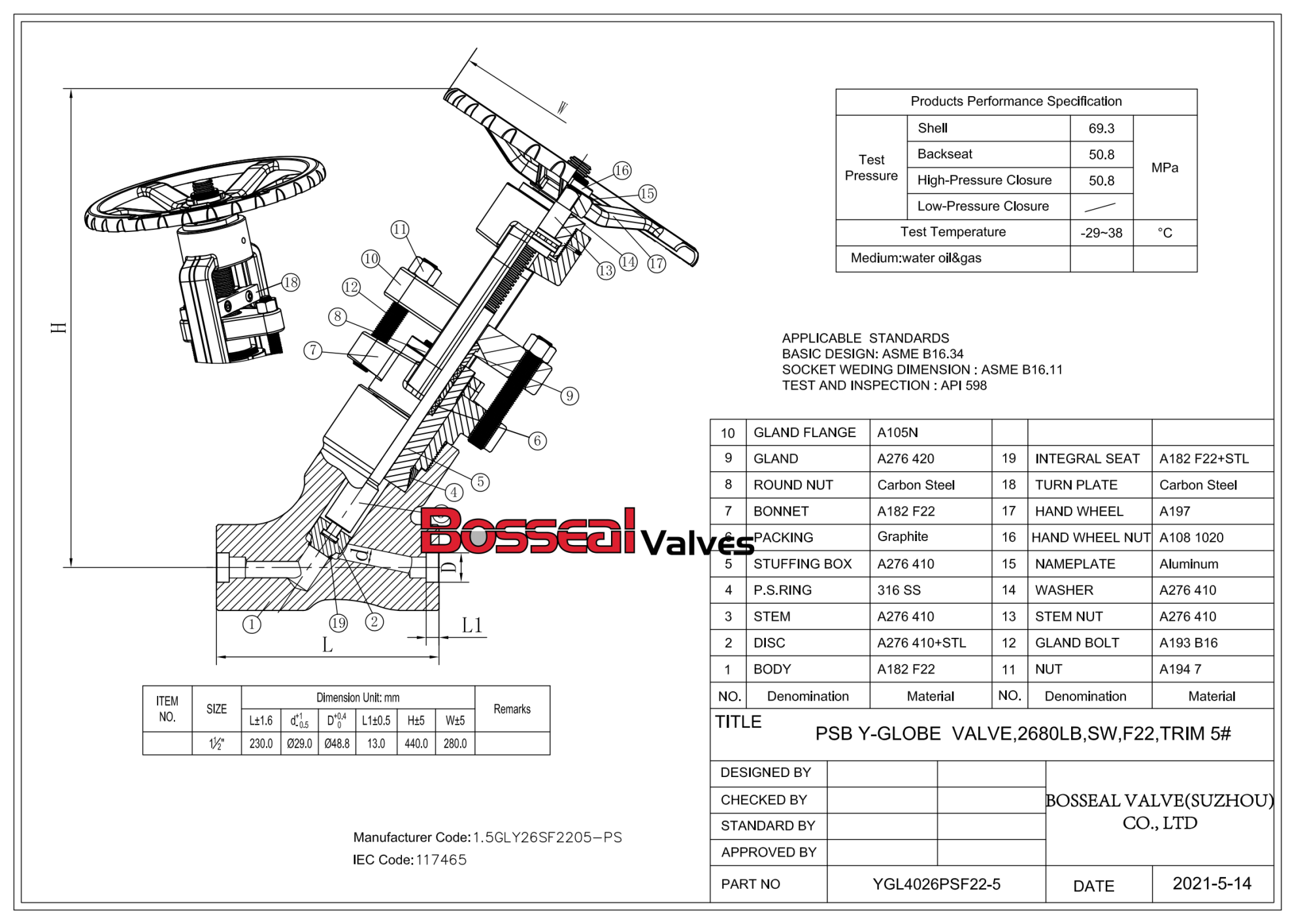

drawing for globe valve
