Key Specifications / Features
Model No. : 1811129
Discover our top-quality 32-inch, 600 LB 3-Piece Ball Valve Mill, crafted to perfection with DN800 and PN100 specifications, meeting API 6D and BS 5351 standards. Constructed from durable ASTM A105N and ASTM A350 LF2 materials, featuring DEVLON seats and trunnion-mounted design for optimal performance. Equipped with gears and RF flanged for seamless integration into your industrial setup.
Categories
Trunnion Mounted Ball Valve
Tags:
32 Inch Ball Valve
, Class 600 LB Ball Valve
, API 6D Ball Valve
.

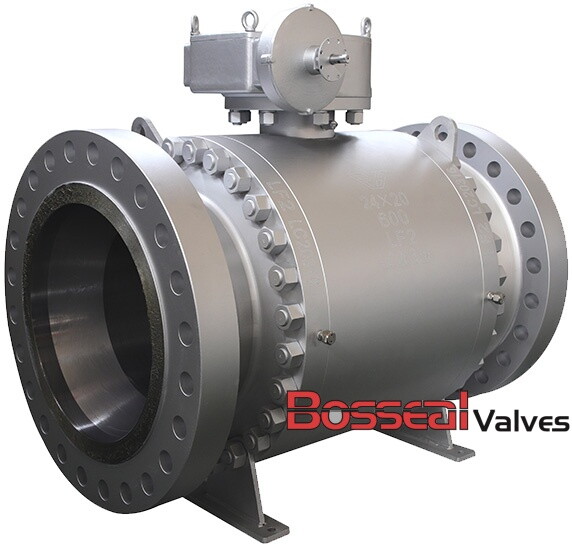

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 32 INCH, 600 LB, RF, DEVLON seat, Gear Operation
Valve Description:
1811129 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 32 Inch
Nominal class: 600 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
