Key Specifications / Features
Model No. : 1811130
Discover our high-quality BS 5351 Ball Valve Plant featuring a robust design suitable for industrial applications. With specifications including 36 Inch size, 600 LB pressure rating, DN900 size, PN100 pressure class, API 6D compliance, and construction from ASTM A350 LF2 and ASTM A105N materials, our trunnion-mounted 3-piece ball valve ensures reliability and performance. Equipped with DEVLON seats, RF connections, and gear operation, this valve guarantees smooth operation and durability for your critical processes.
Categories
Trunnion Mounted Ball Valve
Tags:
36 Inch Ball Valve
, Class 600 LB Ball Valve
, API 6D Ball Valve
.

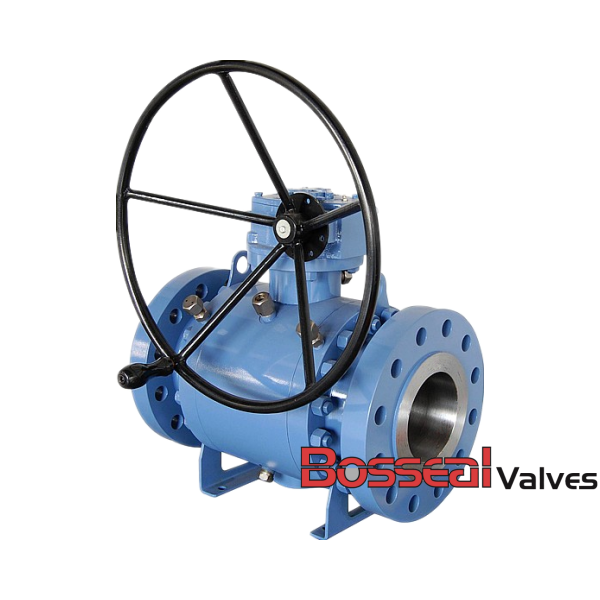

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 36 INCH, 600 LB, RF, DEVLON seat, Gear Operation
Valve Description:
1811130 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 36 Inch
Nominal class: 600 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
