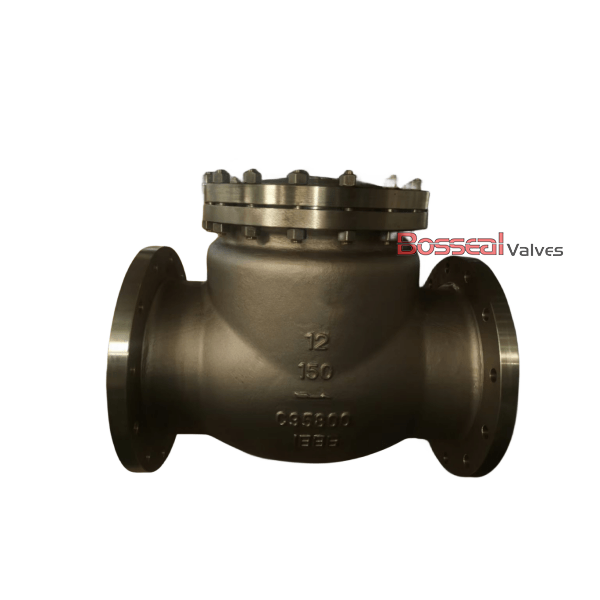

Al-bronze Swing Check Valve, BS 1868, B148 C95800, 32 IN, BB

Name: Al-bronze Swing Check Valve, BS 1868, B148 C95800, 32 IN, BB
SKU: ckv-187306038
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No. : CKV-187306038

We are a dependable aluminum bronze check valve provider in China, offering robust and high-performance valves designed according to BS 1868 standards. Our check valves feature a strong bolted bonnet construction and are manufactured using premium ASTM B148 C95800 aluminum bronze for both body and trim, delivering excellent corrosion resistance and long-lasting durability in challenging environments. Available in a large 32-inch size with a Class 300 LB pressure rating, these valves ensure reliable backflow prevention and smooth flow control. Choose from flat face (FF) or raised face (RF) flanged ends for secure connections, flexible installation, and low-maintenance operation.

Request a quote

Tags:

BS 1868 Check Valve

Al-bronze Check Valve

Bolted Bonnet Check Valve

Detail Information

Valve Description:
187306038 Aluminum Bronze Check Valve, Swing Check Valve
Design Standard: API 6D, BS 1868, API 594
Structure: Bolted Bonnet
Nominal Size: 32 Inch
Nominal Class: Class 300 LB
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Bore Type: Full Bore(API 6D) or Standard Bore(BS 1868, API 594)
End Connection: FF or RF Flanged
Key Features: Bolted Bonnet, Full Opening design available, Operation Lever design Available, Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Al-bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Not Applicable (Manual or actuated available for special request)

Next: Aluminum Bronze Check Valve, C95800, API 6D, 36 IN, CL300 LB

Previous: BS 1868 Swing Check Valves, Al-Bronze C95800, 30 Inch, CL300
